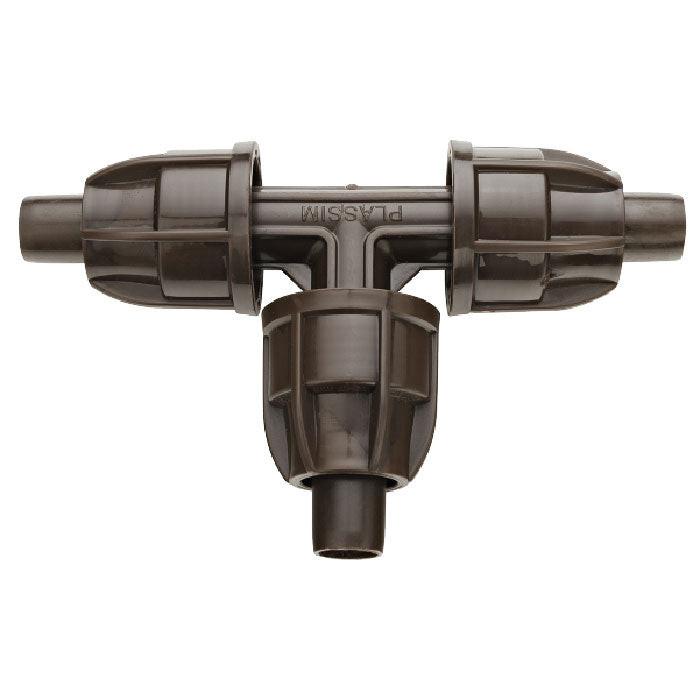

Techlock Fittings BrochureNetafim Techlock Fitting
Simple and effecient installation with reduced physical strain.
Ergonomic design enables quick field installation and reuse while reducing physical strain on installation crews.
The Netafim 17mm Techlock Fittings have barb ends that fit securely on the UV Polyethylene Tubing (HGC747559) while the techlock threaded caps and compression rings ensure a tight seal. The operating pressure is 0 to 100 psi.
- Tubing internal diameter: 0.530” - 0.560“
- Tubing wall thickness: 0.035” - 0.050“
- Tubing outside diameter: 0.600” - 0.660“
- Working temperature range: 32˚ F - 140˚ F
- Operating pressure: 0 to 100 psi
- Pull-out resistance: 67 ft-lbs.
| Brand | Netafim |
|---|---|
| SKU | 32500-080031 |
| Weight (lb.) | 9.9000 |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Lead Time | This product ships in 1-2 weeks |
| Length (in.) | |
| Hazardous Material | false |
| UPC | 3661734582476 |
| UL Listed | No |
| ETL Listed | No |
| Case/Pack/Pallet Amount | 500 |
| Irrigation Part Type | Fittings & Plugs |
| Hardware Diameter | 17 mm |
