Netafim Product Documents
Netafim Screen Filter Spec. SheetNetafim Manual Screen Filters
Designed with a nylon screen and a non-corrosive polypropylene body.
FEATURES & BENEFITS
Screen Filter Design: Collects debris along the nylon screen for efficient filtration
Made Of Non-Corrosive Materials: Polypropylene body provides resistance to chemicals and fertilizers

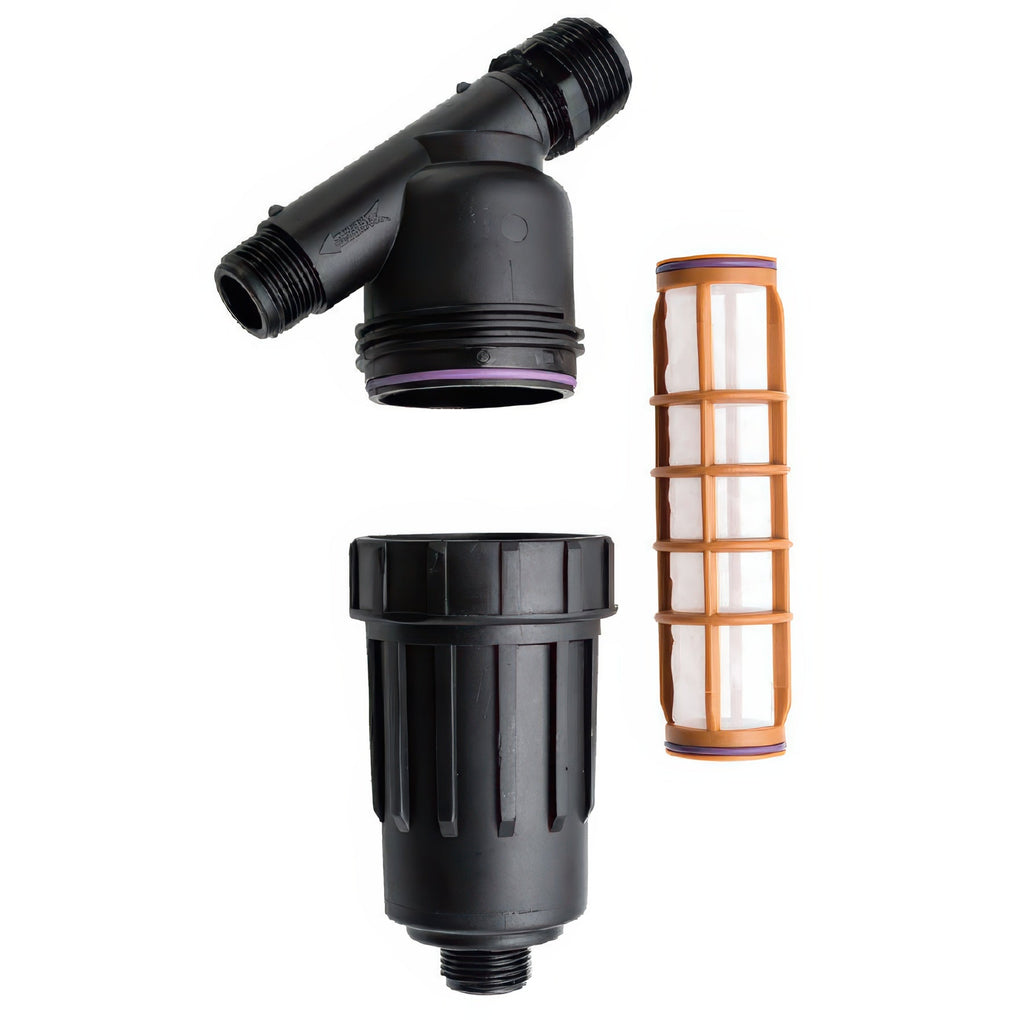

Easy Maintenence: Unit easily unscrews for access to screen.
APPLICATIONS
- Residential
- Commercial
- Municipal
- Institutional
MATERIALS
- Filter body: polypropylene
- Screen: nylon
- O-Rings: EPDM rubber
SPECIFICATIONS
- Maximum pressure: 140 psi
- Flow range:
- 3/4” - 1 to 13 GPM
- 1” - 1 to 30 GPM
- 1.5” - 1 to 66 GPM
- 2” - 1 to 89 GPM
- Filtration area:
- 3/4” and 1“- 14.90 sq. in.
- 1.5” - 85.60 sq. in.
- 2” - 104 sq. in.
- Mesh: 155 Micron: 90
| Brand | Netafim |
|---|---|
| SKU | 76240-001800 |
| Weight (lb.) | 0.2000 |
| Prop 65 | false |
| Lead Time | This product ships in 3-4 weeks |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Irrigation Part Type | Screen Filter |
| Hardware Diameter | 3/4 Inch |
