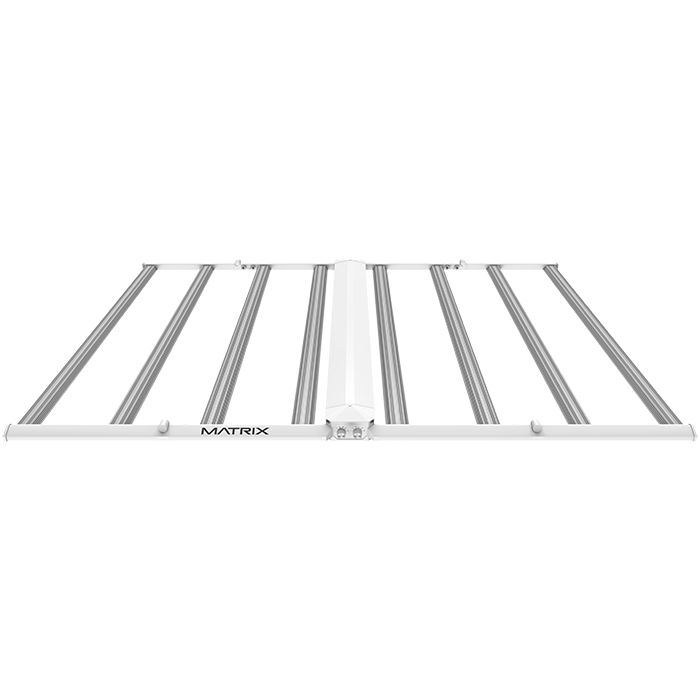

The Matrix Dyna is a cutting-edge grow light designed for ultimate control and efficiency. With universal 0-10V spectrum tuning, it seamlessly integrates with any controller on the market, offering growers unmatched flexibility.

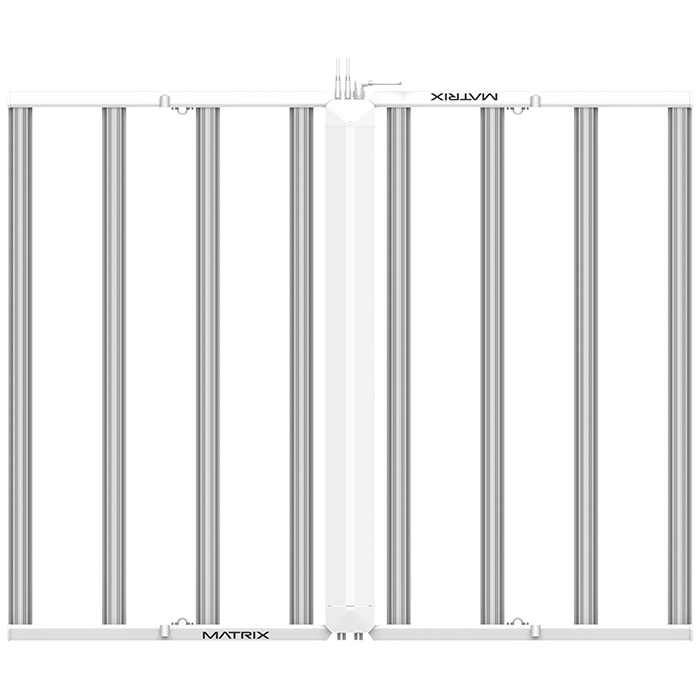

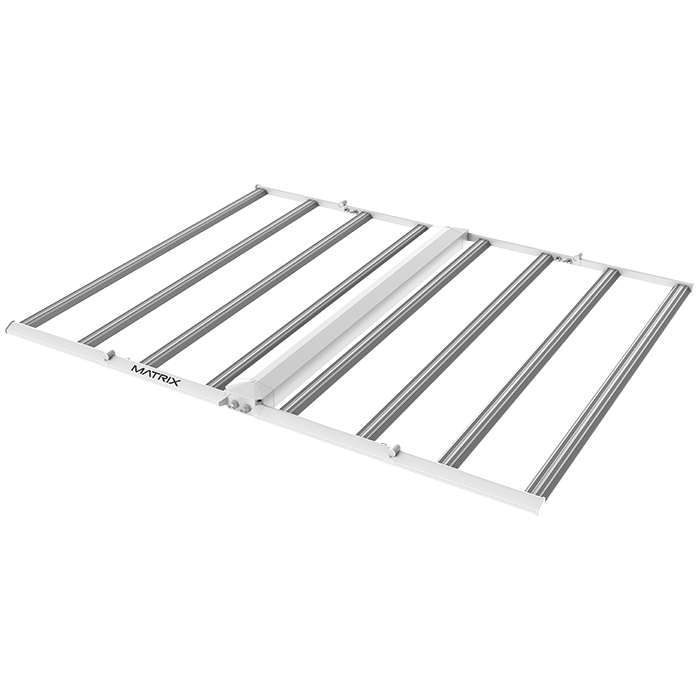

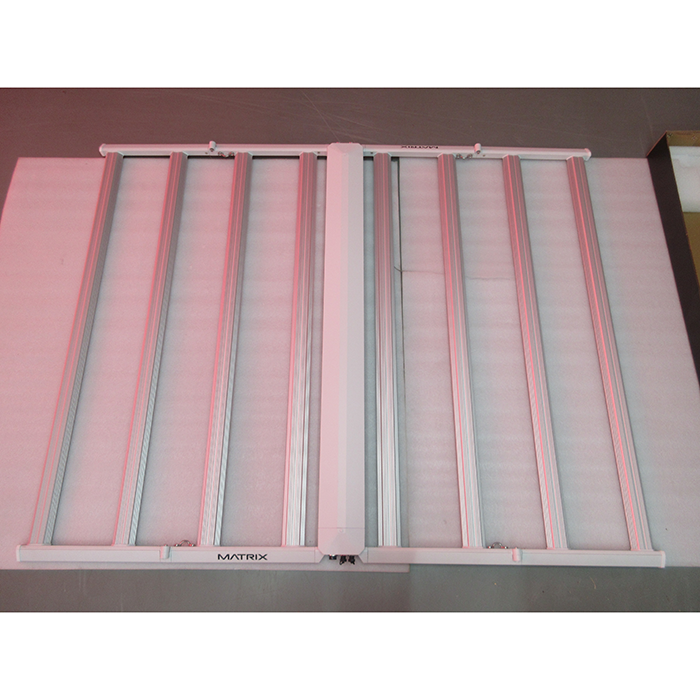

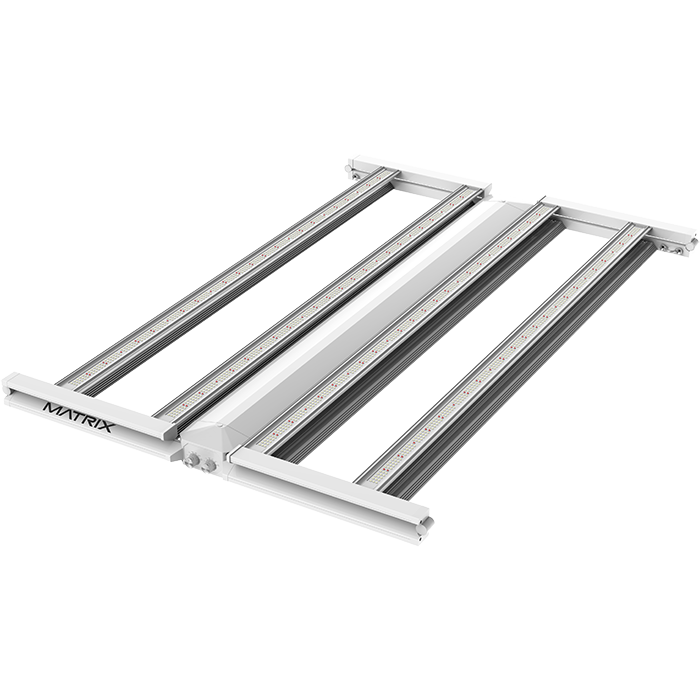

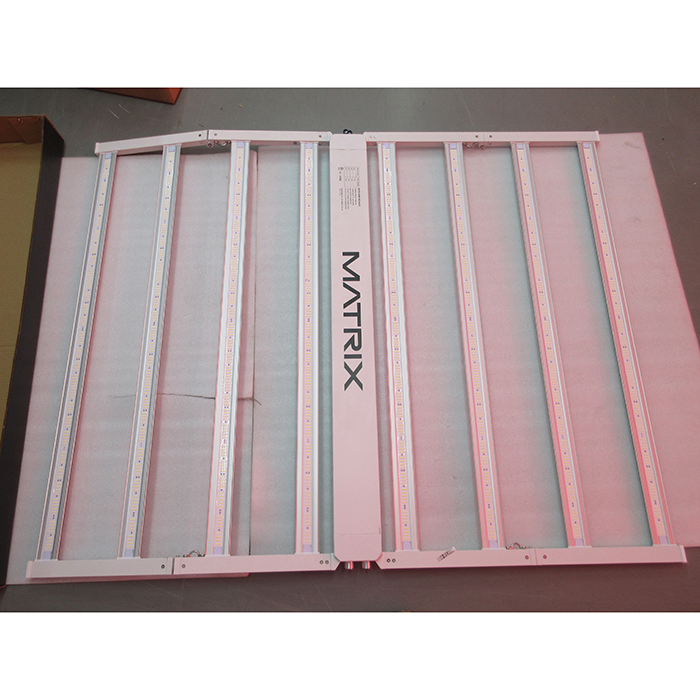

The Matrix Dyna ensures consistent spectrum quality even during dimming, providing optimal light conditions for every growth stage. Boasting up to 3.0 μmol/J PPE with top-tier diodes from Samsung, Osram, and Seoul, it maximizes energy efficiency and plant growth. Its power-stable spectrum tuning optimizes energy use, while the uniform PPFD distribution guarantees even light coverage. The foldable, slim design with a built-in driver makes installation a breeze, making the Matrix Dyna the ideal choice for advanced growers.
Up 80 lights can be daisy chained, making the Matrix M Series 860 Watt LED perfect for commercial grows too!
In The Box:
- 1x) Matrix M8 Dyna 860 Watt LED Light

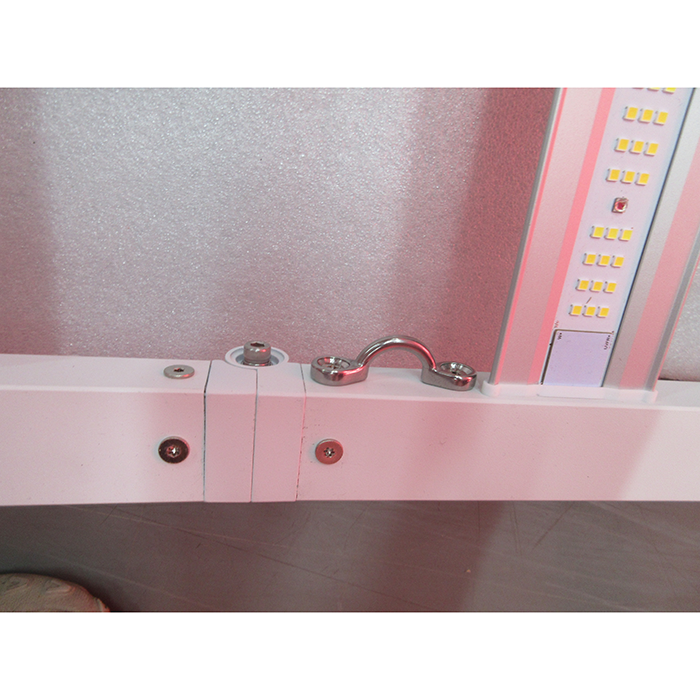

- 4x) Solid Decking Mounts
- 2x) Lance Hangers

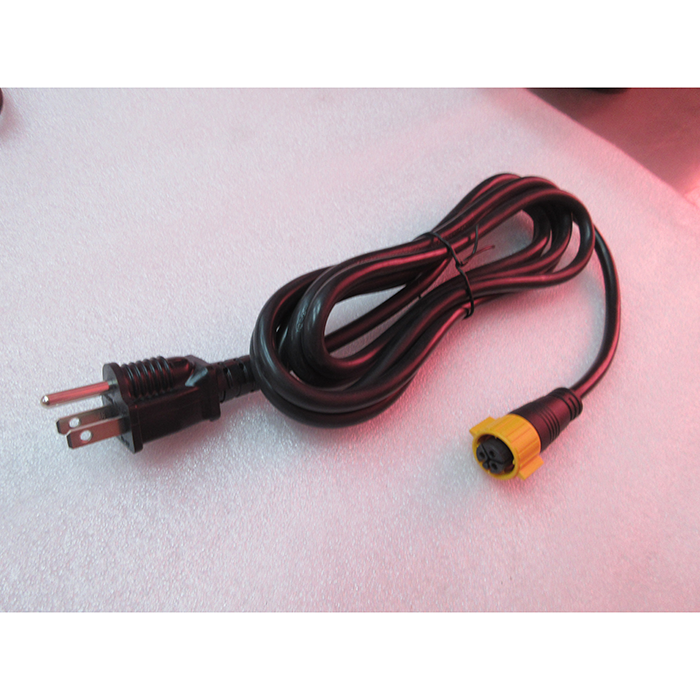

- 1x) Input Power Cord

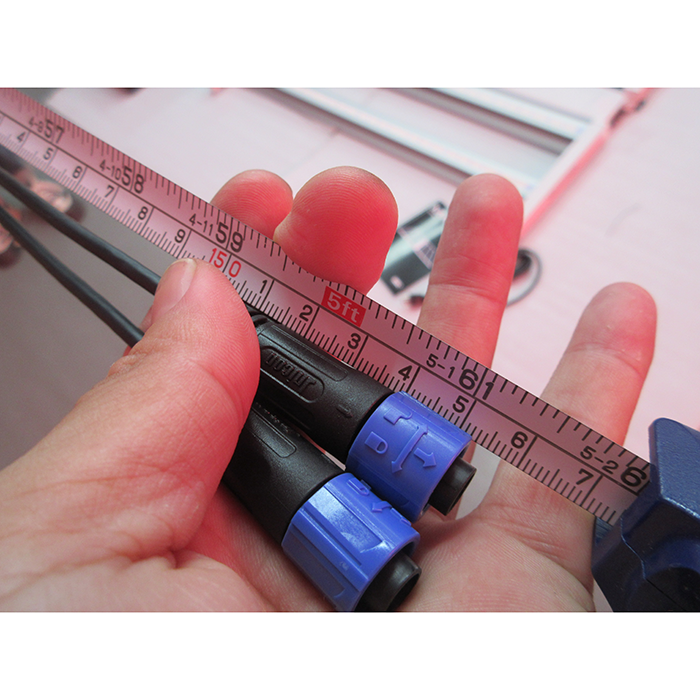

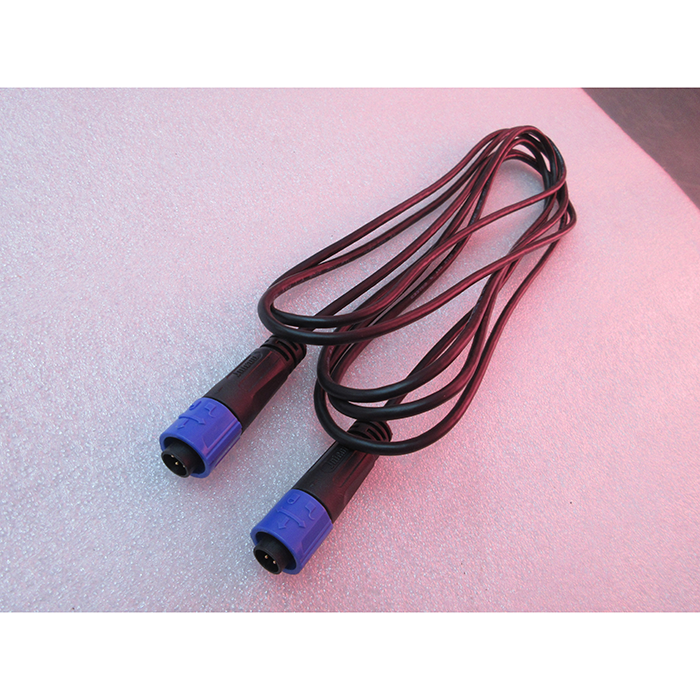

- 1x) M12 Cable

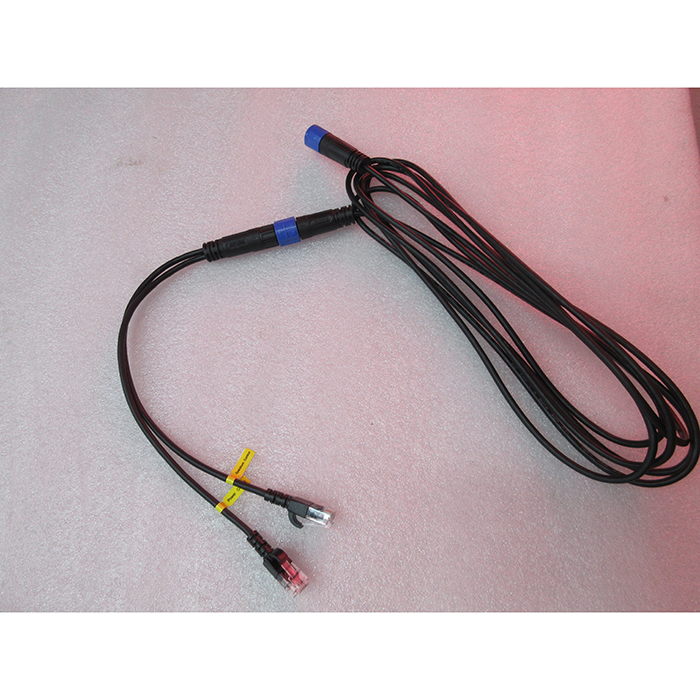

- 1x) RJ14 Adapter
Features
- Optimized Light Intensity The Matrix M series provides an exceptionally high and uniform light intensity, ensuring maximum crop yield and quality.
- Supercharged by Samsung EVO Equipped with Samsung 301H EVO diodes, Matrix M series offers the ability to finely adjust light intensity, allowing growers to tune brightness to meet the specific requirements of plants throughout their entire growth cycle.
- Flexible Dimming Capability With the Matrix controller, lights can be dimmed from 25% to 100%, allowing growers precise control over their lighting conditions.
- Streamlined Installation Matrix M series lights are equipped with built-in drivers, reducing complexity and installation time.
- Versatile Applications Suitable for a wide range of facilities, whether operated on a single or multi-layered system.
- Long-Term Guarantee We stand behind our products with a 5-year warranty, offering our customers peace of mind.
Technical Specifcations
| Input Power | 860 Watts |
|---|---|
| Input Voltage | 120V - 208V - 240V - 277V |
| Input Current | 7.17A - 4.13A - 3.58A - 3.1A |
| Frequency | 50/60Hz |
| Power Factor | >95% |
| Thermal Management | Passive |
| Dimming | 25% - 40% - 60% - 80% - 100%EXT/OFF |
|---|---|
| Spectra Options | Seedling - Vegetative - Early Flower - Late Flower |
| Warranty | 5 Years |
| Certification | ETL/TISI/CE/UL8800/IP66 |
| Size | 60" x 48" x 2.5" |
| Weight | 40.8 lbs. |
| Brand | Matrix |
|---|---|
| SKU | 307531-DYNA-M8 |
| Weight (lb.) | 18.5000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Years |
| Lead Time | This product ships in 2-3 business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller, Adjustable Spectrum |
| Est. Electricity Cost /mo | $38.01 |
| Exact Watts | 860 Watts |
| Suggested Hanging Height | >=6" Above Canopy |
| LED Diode Type | Samsung 301B/301H & OSRAM |
| PAR Efficiency | 3.0µmol/J |
| Total PPF Output | 2580 μmol/s |
| Daisy Chain | Up to 160 fixtures |
| Voltage | 277 Volts |
| Frequency | 50/6Hz |
| Grow Light Certifications | IP66 Rated, ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
