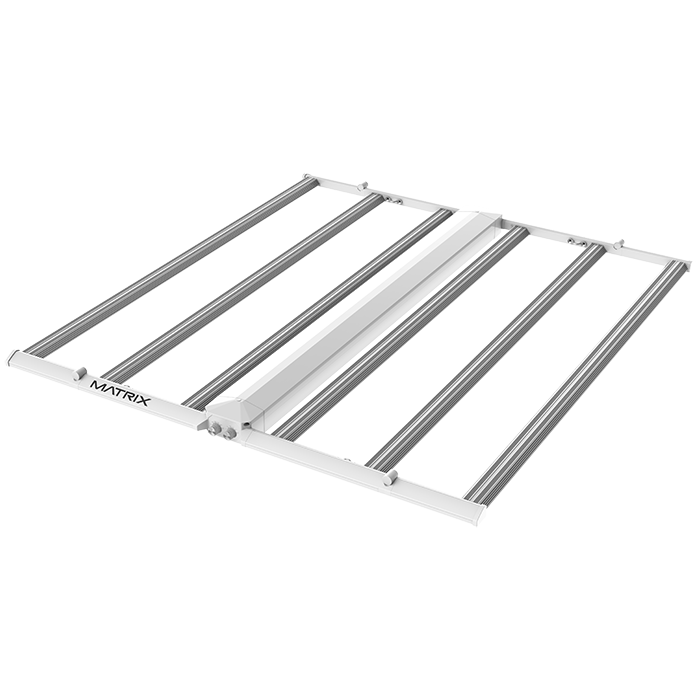

The Matrix Dyna is a cutting-edge grow light designed for ultimate control and efficiency. With universal 0-10V spectrum tuning, it seamlessly integrates with any controller on the market, offering growers unmatched flexibility.
The Matrix Dyna ensures consistent spectrum quality even during dimming, providing optimal light conditions for every growth stage. Boasting up to 3.0 μmol/J PPE with top-tier diodes from Samsung, Osram, and Seoul, it maximizes energy efficiency and plant growth. Its power-stable spectrum tuning optimizes energy use, while the uniform PPFD distribution guarantees even light coverage. The foldable, slim design with a built-in driver makes installation a breeze, making the Matrix Dyna the ideal choice for advanced growers.
Up 80 lights can be daisy chained, making the Matrix M Series 645 Watt LED perfect for commercial grows too!
In The Box:
- 1x) Matrix M6 Dyna 645 Watt LED Light
- 4x) Solid Decking Mounts
- 2x) Lance Hangers
- 1x) Input Power Cord
- 1x) M12 Cable
- 1x) RJ14 Adapter
Features
- Spectrum Tuning on Any Controller Matrix Dyna ingeniously employs a universal 0-10V for spectrum tuning, ensuring compatibility with ALL controllers on the market. This versatile design facilitates ease of use, providing growers with seamless integration into their existing setups.
- Consistent Spectrum Dimming Matrix Dyna provides precise spectrum control even during dimming, allowing for flexibility in optimizing light conditions for various growth stages while maintaining a consistent spectrum throughout the dimming process.
- High PPE with Top Bin Diodes Achieves up to 3.0 μmol/J PPE with top bin diodes from Samsung, Osram, and Seoul, ensuring energy efficiency and robust plant growth.
- Power Stable Spectrum Tuning Features spectrum tuning without the need to change power, uses one single driver to generate multiple light channels and shifting power between channels. Do not waste every single watt.
- Uniform PPFD Distribution Delivers a uniform PPFD distribution across a large coverage area, ensuring consistent light intensity for even plant growth in various cultivation setups.

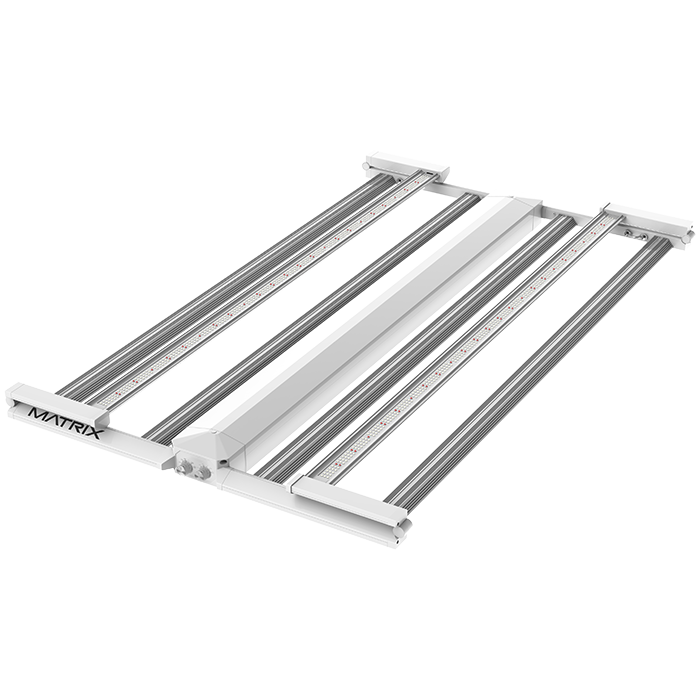

- Foldable and Slim Design Features a foldable and slim design with a built-in driver that facilitates quick installation.
Technical Specifications
| Input Power | 645 Watts |
|---|---|
| Input Voltage | 120V - 208V - 240V - 277V |
| Input Current | 5.38A - 3.1A - 2.69A - 2.33A |
| Frequency | 50/60Hz |
| Power Factor | >95% |
| Thermal Management | Passive |
| Dimming | 25% - 40% - 60% - 80% - 100%EXT/OFF |
|---|---|
| Spectra Options | Seedling - Vegetative - Early Flower - Late Flower |
| Warranty | 5 Years |
| Certification | ETL/TISI/CE/UL8800/IP66 |
| Size | 43.8" x 48" x 2.5" |
| Weight | 35.3 lbs |
| Brand | Matrix |
|---|---|
| SKU | 307530-DYNA-M6 |
| Weight (lb.) | 15.8000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Years |
| Lead Time | This product ships in 2-3 business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $27.91 |
| Exact Watts | 645 Watts |
| Suggested Hanging Height | >=6" |
| LED Diode Type | Samsung 301B/301H & OSRAM |
| Power Factor | >95% |
| Daisy Chain | Up to 160 lights |
| Voltage | 277 Volts |
| Amps | 5.38 A @ 120 Volts - 3.10A @ 208 Volts - 2.69A @ 240 Volts - 2.33A @ 277 Volts |
| Frequency | 50/6Hz |
| Power Cord(s) Included | Yes - 277 Volt with 120 Volt Adapter |
| Coverage Area | Veg: 6' x 6'; Flower: 5' x 5' |
| Grow Light Certifications | DLC Listed, ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
