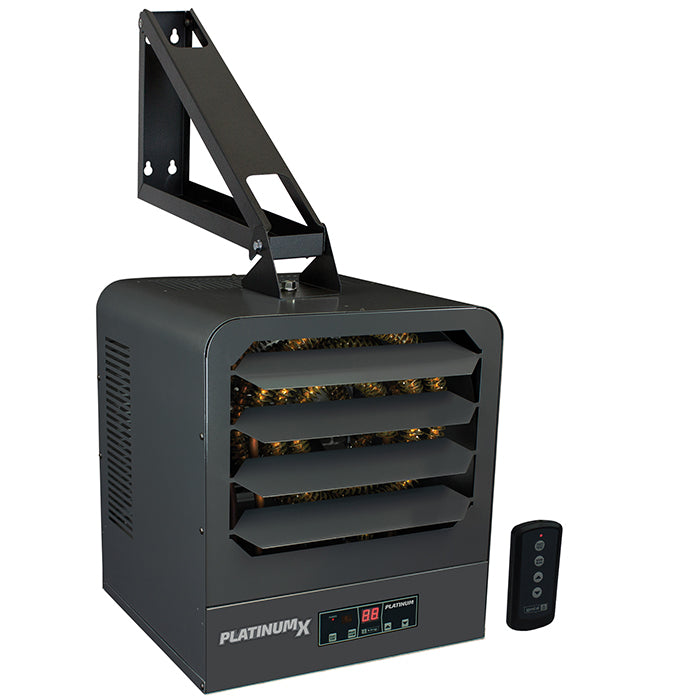

King’s KB PlatinumX series unit heaters are the most full-featured unit heaters on the market
With an in-built electronic thermostat for accuracy and remote control for simple operation. Comes standard with a provision for adding an optional 24V thermostat for remote temperature control, making it compatible with Nest Thermostats. Includes integrated summer fan only and thermostat timer modes, the KB PlatinumX has you covered.
Designed for use as primary or supplemental heat sources in large or exposed areas, including high-rise buildings, stores, warehouses, garages, water treatment and fire room vaults to prevent freezing. Spiral finned steel elements and high CFM ensure even air distribution producing cooler element operation, prolonging heater life. By combining the highest quality components, with a dynamically balanced fan blade, the KB PlatinumX unit heater will provide years of trouble-free service. Includes universal wall/ceiling bracket for simple installation.
Configure the perfect PlatinumX with the power requriements for your facility
Choose your wattage, phase, and voltage to get the exact PlatinumX Heater that you need.
Choose BTU / Wattage
Select your desired BTU rating for your PlatinumX Heater. Wattage ranges from 3,300 all the way to 20,000.
Choose Electrical Phase
Choose the phase you requried for your electrical needs. 1 Phase, 1-3 Multiphase, or 3 Phase
Choose Voltage
Finally, select the voltage you need for your location. Choose from 208, 240, and 480 volt options.
Features & Benefits
- Energy-Saving PlatinumX Electronic Temperature Controller
- Built-In Provision for Optional 24V Remote Thermostat
- Compatible with NEST / Any 24V WIFI Stat
- Remote Control Included with Wall Holder
- Summer Fan Only & Timer Modes
- Adjustable Louvers to Direct Air
- Built-In Fan Delay to Dissipate Heat
- High Mass Steel Fin Heat Exchanger
- Patented Smart Limit Protection
- Permanent Lubricated Unit Bearing Motor
- Universal Wall/Ceiling Bracket Included
- Proudly Made in the USA with U.S. & Global Materials
- 5-Year Limited Warranty
King’s KB PlatinumX series unit heaters are the most full-featured unit heaters on the market, with in-built electronic thermostat for accuracy and remote control for simple operation. Comes standard with a provision for adding an optional 24V thermostat for remote temperature control. Includes integrated summer fan only and thermostat timer modes, the KB PlatinumX has you covered. Designed for use as primary or supplemental heat sources in large or exposed areas, including high-rise buildings, stores, warehouses, garages, water treatment and fire room vaults to prevent freezing. Spiral finned steel elements and high CFM ensure even air distribution producing cooler element operation, prolonging heater life. By combining the highest quality components, with a dynamically balanced fan blade, the KB PlatinumX unit heater will provide years of trouble-free service. Includes universal wall/ceiling bracket for simple installation.
Energy-Saving Technology in Comfort Heating
KB PlatinumX Includes It All. Offering an in-built electronic thermostat for accuracy and remote control for simple operation, as well as an integrated summer fan only mode and thermostat timer mode, the KB PlatinumX has you covered.
KB PlatinumX Works with NEST
Since KB PlatinumX comes standard with a provision for adding an optional 24V thermostat for remote temperature control, setting up a Nest WiFi thermostat or any 24V WiFi thermostat is simple and easy. Controlling your Unit Heaters has never been easier. Comfort is a click away.
Safe Comfort For Large Spaces
Patented Smart Limit Protection (U.S. Patent #6,748,163 B2) automatically shuts power off to the heater in an abnormal event and must be manually reset for safety.
Spiral Steel Fin Heating Element For Maximum Heat Exchange
The metal sheath element is copper brazed with spiral fins then molded into a coil configuration. This combination produces the heat transfer while eliminating the potential for hot spots by positioning the element in the maximum airflow stream.
Engineering Specifications
Construction
All exterior and interior metal enclosure parts are made from 20 gauge electrogalvanized Steel with a rust inhibiting baked enamel finish. Smooth rounded corners and protective edge trim give an attractive modern appearance.
Electronic Control
Up, down temperature mode. Start/Stop. Standard on all heaters
Adjustable Outlet Louver
Louvers direct air up or down as needed for the heating application.
Rear Intake Screen
Heavy gauge steel screen protects against foreign objects making accidental contact with the rotating fan blade.
Spiral Fin Elements
The metal sheath element is copper brazed with spiral fins then molded into a coil configuration. This combination produces the best heat transfer while eliminating the potential for hot spots by positioning the element in the maximum airflow stream
Totally Enclosed Fan Motor
Permanently lubricated long life, unit bearing with 20cc of oil. Epoxy-coated motor with enclosed rotor resists moisture and corrosion for long-lasting, trouble-free operation.
Aluminum Fan Blade
Axial flow-type fan mounted directly to the motor shaft for maximum efficiency.
Thermal Overload
Heaters shall be equipped with King’s patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes. Automatically reset of thermal overloads, which allow the element to continue to cycle under abnormal conditions, will not be accepted.
Internal Controls
Magnetic contactors are standard on all 480V heaters, all 208V/1-Phase, 240V/1-Phase, 277V/1-Phase heaters above 6kW, and all 3-Phase heaters.
Provision For 24V Remote Thermostat
Includes terminals to connect an optional 24V 2-Stage Thermostat.Compatible with NEST / any 24V WIFI Stat
Fusing
Internal circuit fusing is provided when the heater ampacity exceeds 48 Amps to comply with N.E.C. standards. A fan delay is provided standard on models 12.5-kW and above to dissipate residual heat from the heating elements.
Easy Installation
A quick access panel located on the bottom of the heater allows for quick wiring and easy maintenance for the life of the heater. Includes universal wall/ceiling bracket for simple installation
Approvals
cULus (E41422)
| Brand | King Electric |
|---|---|
| SKU | KB2415-3-PLTMX |
| Prop 65 | false |
| UPC | 93319332146 |
| Hazardous Material | false |
| Lead Time | Due to high demand, this product ships in 4-6 Weeks |
| Warranty | 5-Year Limited Warranty |
| Weight (lb.) | 50.0000 |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Heating Capacity | 51,182 BTU |
| CFM Rating | 925 CFM |
| Exact Watts | 15,000 Watt |
| Voltage | 208 Volts, 240 Volts |
| Amps | 31.2 - 36.1 Amps |
| Heating Element | Spiral Finned |
| Installation Type | Quick Connect or DIY |
| ENERGY STAR Certified | No |
