Horticulture Lighting Group Product Documents

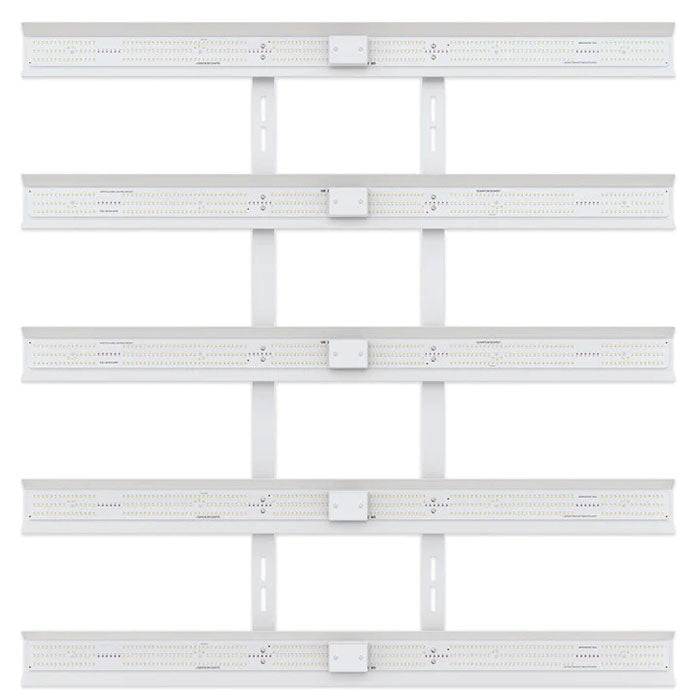

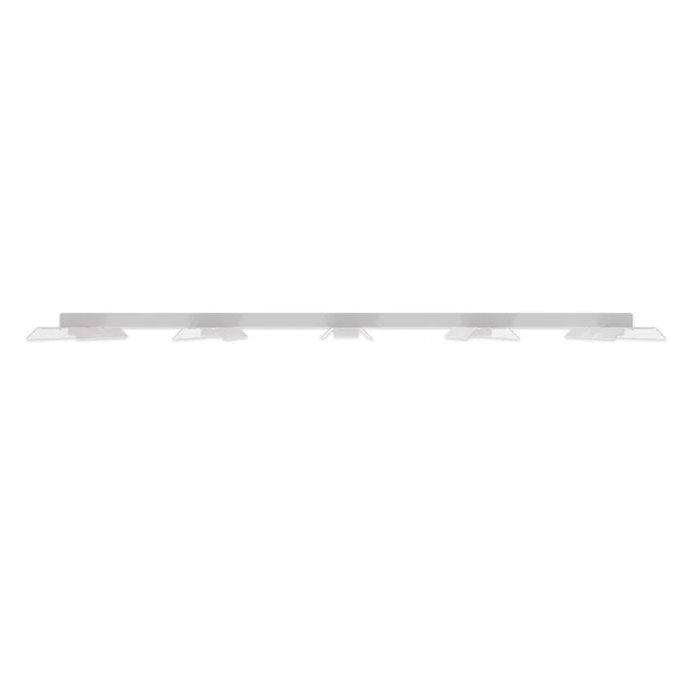

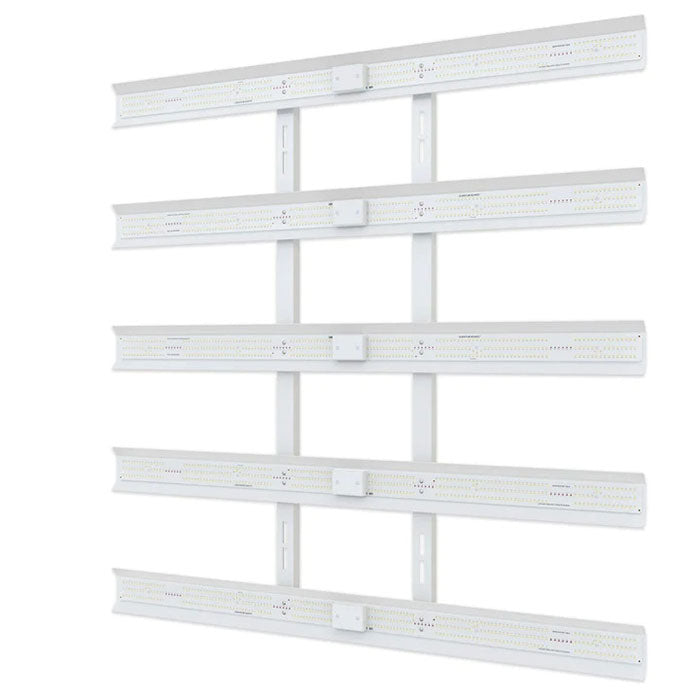

HLG Tomahawk 720 ManualHLG Tomahawk 720 Bar Lamp’s revolutionary design has been created specifically for high PPFD cultivation in vertical farming or low ceiling grow operations. With 720W of power and 5 bars of Full Spectrum White with Deep Red LEDs, this lamp provides a comprehensive range of light that can enhance plant growth and maximize yields.
Dimming options:
- RJ Ports + Manual Dimming Knob
- GrowFlux Module*
*Required the GrowFlux Access Point available separately.
Top Features
- Integrated reflectors improve PPFD levels while minimizing hot spots
- Remote mountable driver.
- Improved open design allows for unobstructed airflow

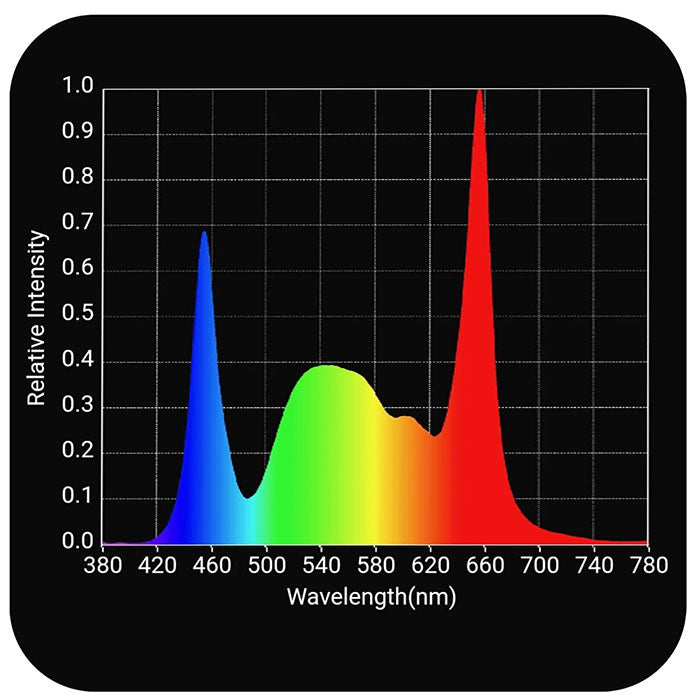

- Plant-centric White Spectrum with Deep Red
- Ultra-lightweight construction
- 5 Year Warranty
The HLG Tomahawk 720 boasts convenient features such as dimming capabilities, ultra-lightweight construction, and easy installation with a remote mountable driver. The integrated asymmetrical reflectors increase photon delivery resulting in higher quality yields even at lower levels of the canopy while minimizing hot spots. This improved open design allows for unobstructed airflow for more efficient ventilation, making it an ideal choice for vertical rack and tent grows. This lamp produces over 1980 PPF output with photon efficacy of 2.80 µmol/joule.
Specifications for the Tomahawk
| Power | 0-720 Watts |
|---|---|
| Voltage Range | 120-277 VAC 50-60Hz |
| Flowering Footprint | 5' x 5' |
| Recommended mounting height | 8" - 24" Above Canopy |
| PAr | 2.8 μmol/J |
| Total output | 1980 μmol/s |
|---|---|
| Dimensions | 40.75" x 40" x 2.5" |
| Product Weight | 20 lbs |
| Certifications | UL 8800, CSA, DLC pendin |
| Warranty | 5 Years |
| Brand | Horticulture Lighting Group |
|---|---|
| SKU | HLG-TOMAHAWK-720-GFX |
| Weight (lb.) | 20.0000 |
| Prop 65 | false |
| Warranty | 5 Year |
| Lead Time | This product ships in 2 weeks |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Dimmable *with Controller |
| Est. Electricity Cost /mo | $31.10 |
| Exact Watts | 0-720 Watts |
| Suggested Hanging Height | 8" - 24" |
| PAR Efficiency | 2.8 μmol/J |
| Total PPF Output | 1980 μmol/s |
| Voltage | 120 Volts, 240 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes |
| Coverage Area | Veg: 5' x 5'; Flower: 5' x 5' |
| Grow Light Certifications | ETL Listed, UL Listed |
| ETL Listed | Yes |
| UL Listed | Yes |
| Dimming Option | GrowFlux Module |
