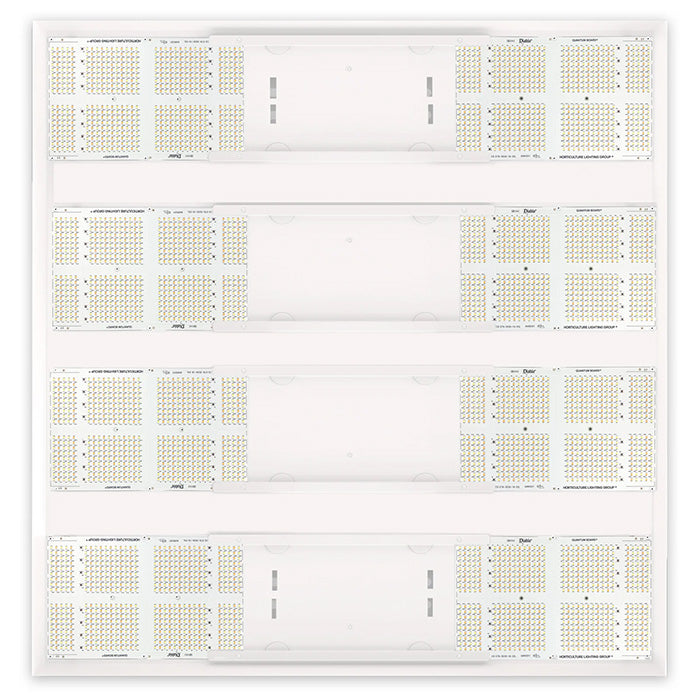

HLG Tomahawk 650 ManualHLG Scorpion® Ultima Diablo™ commercial lamps are designed for growers who want to maximize crop yields with a grow light that offers both high intensity and high efficiency. This lamp uses 8 Diablo Quantum Boards® with Dual - Zone Dimming for optimizing light spread, making it perfect for tents, flood tables, rolling benches and vertical racks.
Integrated reflectors improve photon delivery resulting in better quality yields even at the lower levels of the canopy. This lamp produces 4178 PPF output with an ultimate photon efficacy of 2.86 µmol/J.
Top Features
- Over 4178 PPF output with an ultimate photon efficacy of 2.86 µmol/J
- Integrated reflectors improve PPFD levels at all levels of canopy
- Dual - Zone Dimming
- Two Drivers
- **Suitable for 5' x 5' and 4' x 4' Tents

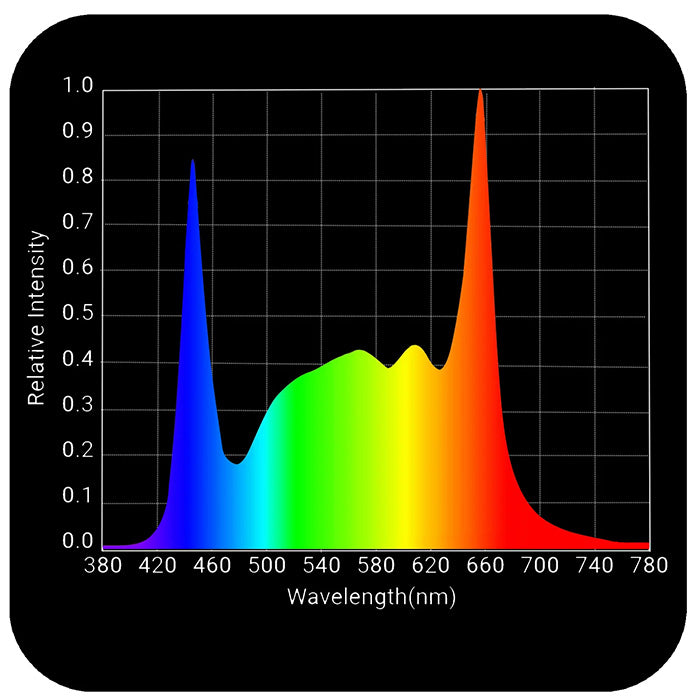

- Plant-centric White spectrum with Deep Red. Red:Green:Blue ratio of 37:42:21
- Reliable passive-cooled design
- 5 Year Warranty
**Warning: Using this lamp in spaces 5’ x 5’ and under at maximum intensity may damage plants.
Specifications
| LED | Full Spectrum White & Deep Red |
|---|---|
| PPF | 4178 µmol/s |
| PAR | 2.86 µmol/J |
| Voltage | 120VAC - 277VAC : 50/60 Hz |
| Power | 0-1500 Watts |
| **Suitable Tent Footprint | 5' x 5' and 4' x 4' |
| Rec. Mounting Height | 50% power (15"-24" Bloom; 30"-36" Veg) 100% power (30"-36" Bloom; 36"-48" Veg) |
| Max Ambient Temperature | 40°C (104°F) |
|---|---|
| Dimming Options | Dual - Zone 0-10V Dimmable, RJ11 Straight |
| Dimensions | 39" x 36" x 3.75" |
| Weight | 34.15 lbs |
| Thermal Management | Passive-Cooled Design |
| Warranty | 5 Years* |
| Certifications | Conforms to ANSI/vCAN/UL STD 8800, Conforms to UL STD 1598, Certified to CSA STD C22.2 # 250. |
*5 year Warranty covers entire luminaire including LED board, Drivers and other electrical components.
**Warning: Using this lamp in spaces 5’ x 5’ and under at maximum intensity may damage plants.
| Brand | Horticulture Lighting Group |
|---|---|
| SKU | HLG-SCORPION-DIABLO-1500W-GFX |
| Weight (lb.) | 34.1500 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | Ships in 7-10 business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum, Deep-Red |
| LED Fixture Type | Panel |
| LED Features | Dimmable *with Controller |
| Exact Watts | 1500 Watts |
| Suggested Hanging Height | 50% intensity (15"-24" Bloom; 30"-36" Veg) - 100% intensity (30"-36" Bloom; 36"-48" Veg) |
| PAR Efficiency | 2.86 µmol/J |
| Total PPF Output | 4178 µmol/s |
| Voltage | 120 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Coverage Area | Veg: 5' x 5'; Flower: 5' x 5' |
| Grow Light Certifications | UL Listed, CSA Listed |
| ETL Listed | No |
| UL Listed | Yes |
| Dimming Option | GrowFlux Module |
