Horticulture Lighting Group Product Documents

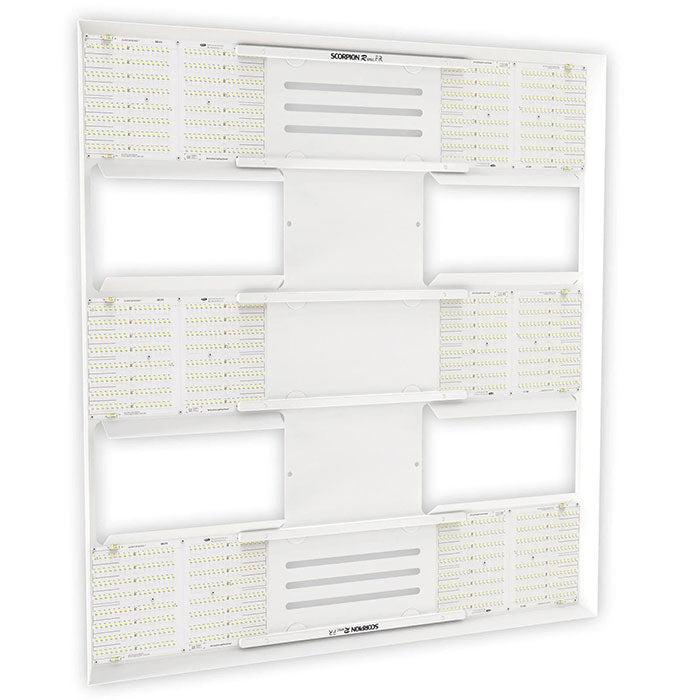

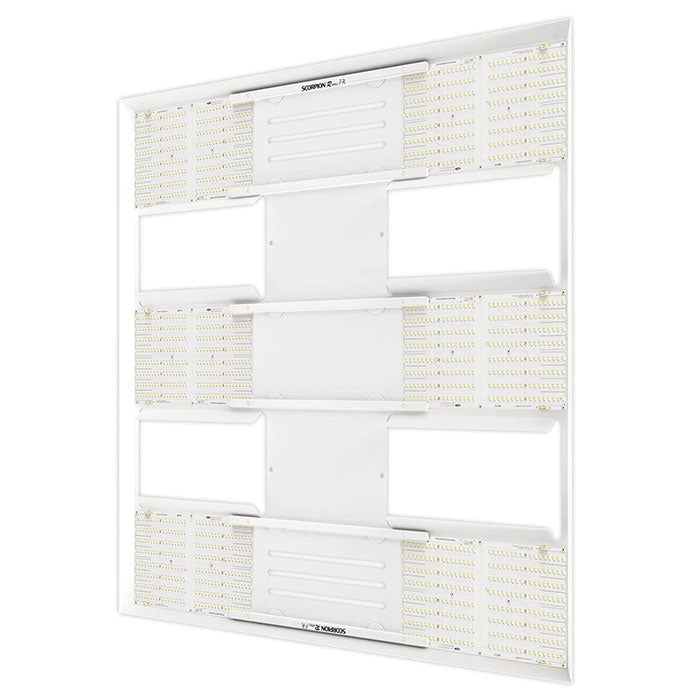

HLG Scorpion Rspec Far Red Manual HLG Scorpion Rspec Far Red Efficiency ReportThe HLG Scorpion Rspec FR commercial indoor horticulture LED grow light is designed for grows with low ceiling heights or for vertical racks. HLG’s New Scorpion® Rspec® FR uses 6 QB272 Quantum Boards® for an even light spread at just 18” from the canopy. This incredibly efficient full spectrum horticulture lamp has 2.8 micromoles per joule, with a new far-red spectrum. This unit is dimmable, with wattage output from 160 to 700 watts.
Benefits of Far Red
- Increases plant biomass
- Promotes lateral root growth
- Improves efficiency of overall spectrum
Features & Benefits of the Scorpion Rspec Far Red
- Designed for low ceiling heights or vertical racks
- High efficiency white light Quantum Boards

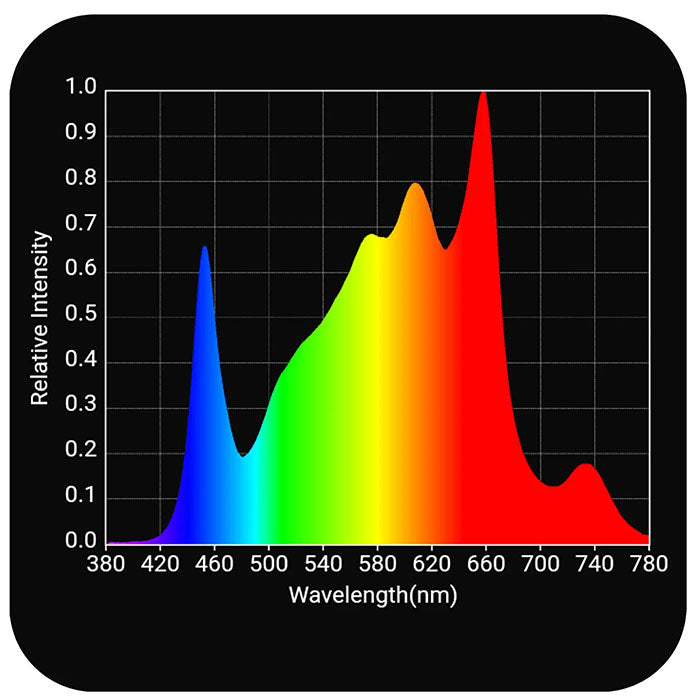

- Full Spectrum White and Far-Red
- Reliable passive-cooled design
- Better canopy light penetration with diffused light
- Dimmable power supply included
- Auto sensing Inventronics power supply works on both 120VAC and 240VAC and 277VAC
- 5 Year warranty
Copmpared to the original Scorpoion Rspec, the Far-Red outperforms in every way
- 24% more total output
- 18.66% more output in visible spectrum
- 7.25% more efficient
- 2.75% more efficient in visible spectrum
- 16% more power or Amp draw
Specifications for HLG Scorpion Rspec FR
| Power | 160-700 Watts |
|---|---|
| Voltage Range | 120-277 VAC 50-60Hz |
| LED | Full Spectrum White, Far-Red |
| Footprint | 5' x 5' at 18" - 6' x 6' at 24” |
| System PPF Efficacy | 2.81 μmol/J |
|---|---|
| Total output | 1964 PPF |
| Dimensions | 38.5" x 36" x 2.75" |
| Recommended Mounting Height | 12" - 18" above canopy |
| Brand | Horticulture Lighting Group |
|---|---|
| SKU | HLG-SCORPION-RSPEC-FAR-RED-RJ-MAN |
| Weight (lb.) | 30.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This product ships in 1-4 business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $30.24 |
| Exact Watts | 700 Watts |
| PAR Efficiency | 2.81 μmol/J |
| Total PPF Output | 1964 μmol/s |
| Voltage | 120 Volts, 240 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Coverage Area | Veg: 6' x 6'; Flower: 5' x 5' |
| Grow Light Certifications | ETL Listed, UL Listed, CSA Listed |
| ETL Listed | Yes |
| UL Listed | Yes |
| Dimming Option | RJ Ports & Manual Knob |
