Ideal For Full & Flower Cycles

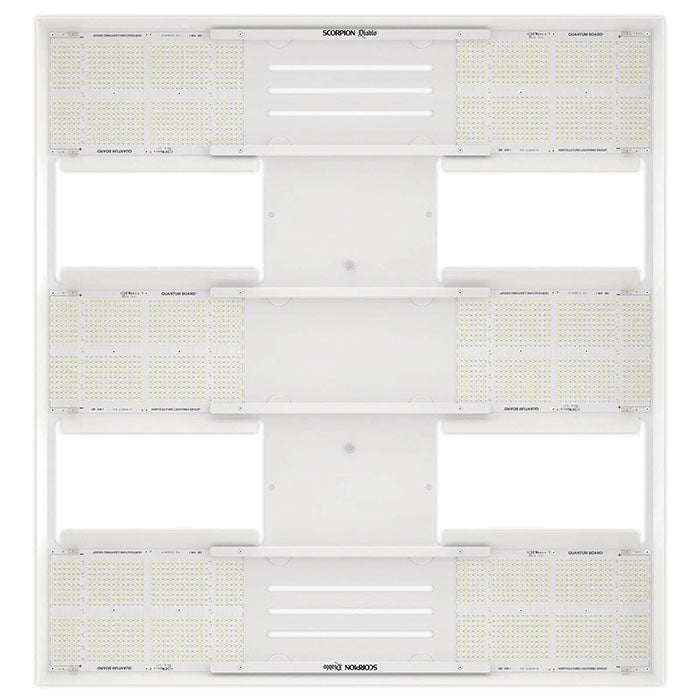

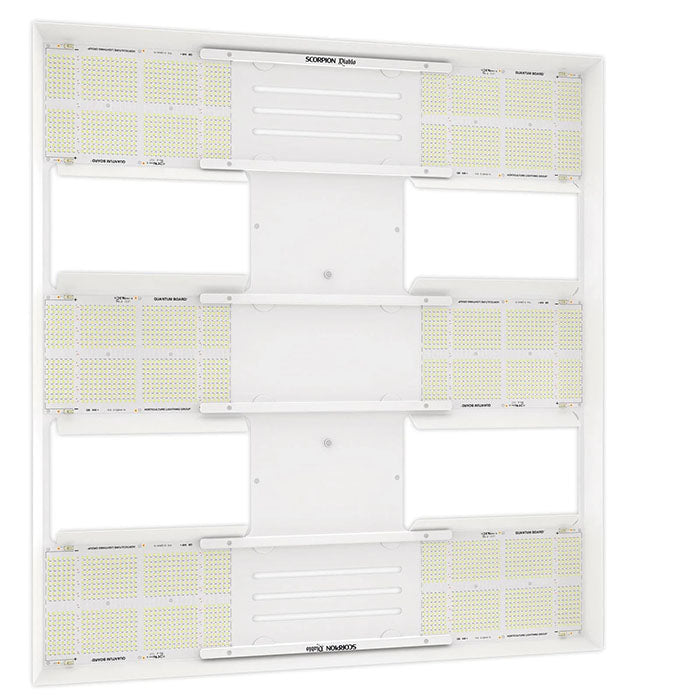

HLG Scorpion® Diablo™ commercial lamps are designed for growers who want to maximize crop yields with a grow light that offers both high intensity and high efficiency. This lamp uses 6 advanced design Diablo Quantum Boards® for an even light spread making it perfect for tents, flood tables, rolling benches, and vertical racks.
Integrated reflectors improve photon delivery resulting in better quality yields even at the lower levels of the canopy. This lamp produces over 2100 PPF output with photon efficacy of 3 µmol/J
What's Included
- HLG Scorpion Diablo Lamp
- Hanging hardware
- Rope Ratchets
- Power Cord
Features of the Scorpion Diablo 2.0
- Over 2100 PPF output with photon efficacy of 3 µmol/J
- Integrated reflectors improve PPFD levels at all levels of canopy

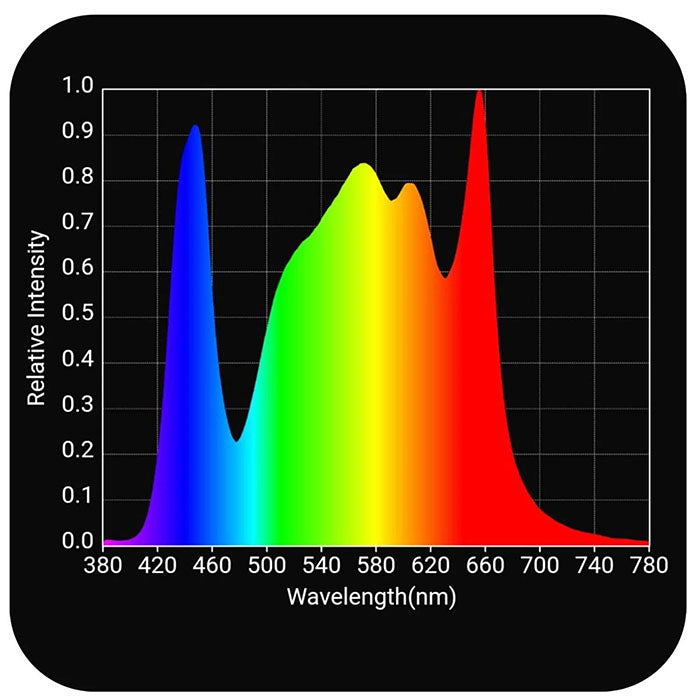

- Plant-centric White spectrum with Deep Red. Red:Green:Blue ratio of 37:42:21
- Reliable passive-cooled design
- Dimmable power supply included
- 5 Year Warranty
Dimming Options
- RJ Ports 0-10V & Manual Knob
- *GrowFlux Module for wireless dimming*
*If you select the GrowFlux Module, the GrowFlux Access Point IS REQUIRED for control of your fixtures
Optional Upgrade: GrowFlux Access Point
Securely connect your devices to the Cloud with GrowFlux Mesh, allowing for remote control, scheduling, and monitoring of horticultural lighting and sensors.
GrowFlux Mesh is an on-site, private, and secure wireless mesh developed for the agriculture industry, and offers long-range, high through-wall performance, self-healing redundancy, smart range extension, and secure encrypted communications.
- Number of fixtures & sensors supported: Up to 1,000
- Range: 500+ feet indoors through walls, 1+ mile line of sight
- Wireless networking protocol: AetherMesh Sub-GHZ 6LoWPAN
- Internal high performance antenna
- 1x 10/100 Ethernet port for local network connection
- Includes 5v power adapter, 5' ethernet cable, quickstart guide
Specifications of the Scorpion Diablo 2.0
| Power | 0-715 Watts |
|---|---|
| Voltage Range | 120-277 VAC 50-60Hz |
| Flowering Footprint/ Canopy Distance | 5' x 5' / 15" - 24" |
| Veg Footprint/ Canopy Distance | 6' x 6' / 30” - 36" |
| System PPF Efficacy | 2.97 µmol/J |
|---|---|
| Total output | 2121 PPF |
| Dimensions | 38.75" x 36.125" x 3.25" |
| Certifications | UL 8800, UL 1598 damp location, DLC |
| Brand | Horticulture Lighting Group |
|---|---|
| SKU | HLG-SCORPION-DIABLO-GFX |
| Weight (lb.) | 24.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This product ships in 3-4 weeks |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Dimmable *with Controller |
| Est. Electricity Cost /mo | $30.88 |
| Exact Watts | 715 Watts |
| Suggested Hanging Height | 15" - 24" Flowering; 30" - 36" for Veg |
| LED Driver Type | Mean Well Driver |
| PAR Efficiency | 2.97 μmol/J |
| Total PPF Output | 2121 μmol/s |
| Voltage | 120 Volts, 240 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120/240 Volt |
| Coverage Area | Veg: 6' x 6'; Flower: 5' x 5' |
| Grow Light Certifications | DLC Listed, ETL Listed, UL Listed |
| ETL Listed | Yes |
| UL Listed | No |
| Dimming Option | GrowFlux Module |
