HLG Blackbird ManualThe Quality LED You Expect. The High Yields You Deserve
HLG BLACKBIRD is designed for home grows and is perfect for 4x4 grow tents. HLG’s newest Scorpion Series edition, the BLACKBIRD, uses 6 Full Spectrum QB 200 Quantum Boards for an even light spread at just 20” from the canopy.
The Blackbird’s high-quality, full-spectrum light delivers full-spectrum whites and deep reds from a highly efficient fixture. Passively cooled, the Blackbird offers superior canopy penetration for high yields and beautiful, vibrant plants. Horticulture Lighting Group’s Scorpion Series edition, the Blackbird is a powerful LED grow light designed for home growers and indoor gardens.
Important LED Grow Light Specs
- Flowering Footprint: 4' x 4' at 20"-24"
- Veg Footprint: 6' x 6' at 30”
- Recommended Mounting Height: 20-30 inches above canopy
What's in the box?
- HLG BlackBird LED Grow Light Fixture
- Hanging hardware
- Rope Ratchets
Features & Benefits
- Suitable for grow tents for full and flower cycles
- Highest efficiency full spectrum grow lamp
- Full Spectrum White and Deep Red
- Reliable passive-cooled design
- Better canopy light penetration with diffused light
- Dimming power supply included
- Auto sensing power supply works on 120VAC, 240VAC, and 277VAC
- 3 Year Warranty

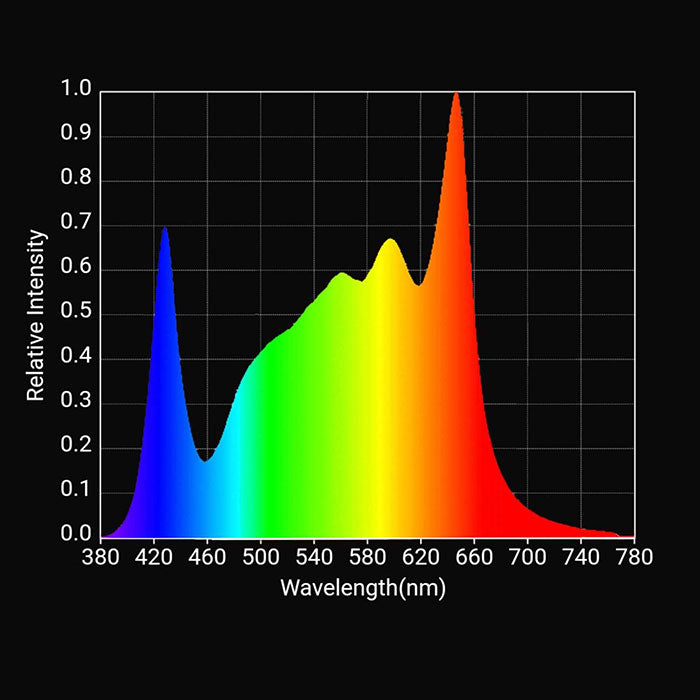

Spectrum for the HLG BlackBird LED Grow Light
Full Spectrum with Deep-Red
HLG BlackBirds Specutrm is thanks to its Quantum Boards, the world's highest efficiency light engines, and using top-notch LEDs, but these are just a few examples of what makes the HLG BlackBird one of the best commercial grow lights available. The 660nm red light gives your plants that extra boost during the flowering stage to really round out the effectiveness of this fixture.
Achieve higher intensity and increase even coverage in a grow tent, reflective area, or cross-over by using multiple lamps.
- Grow tents
- Grow rooms
- Large indoor grows
- Vegetative growth and/or flowering
- Full-cycle growing from seedling to flower
Specifications
| LEDs | Samsung LM301H & Deep Red 660nm |
|---|---|
| PPF | 1465 µmol/s |
| Amps | 5A @ 120V, 2.5A @ 240V |
| PAR | 2.57 µmol/J |
| Voltage Range | 120-277 - 50/60 Hz |
| Power | 100-600 Watts |
| Footprint | 4’ x 4’ for Bloom; 6’ x 6’ for Veg |
| Mount Height | 20”-24” Bloom; 30” for Veg |
|---|---|
| Thermal Managemen | Passive-Cooled Design |
| Max Ambient Temp | 40 °C (104 °F) |
| Dimmable | Manual or 0-10V option |

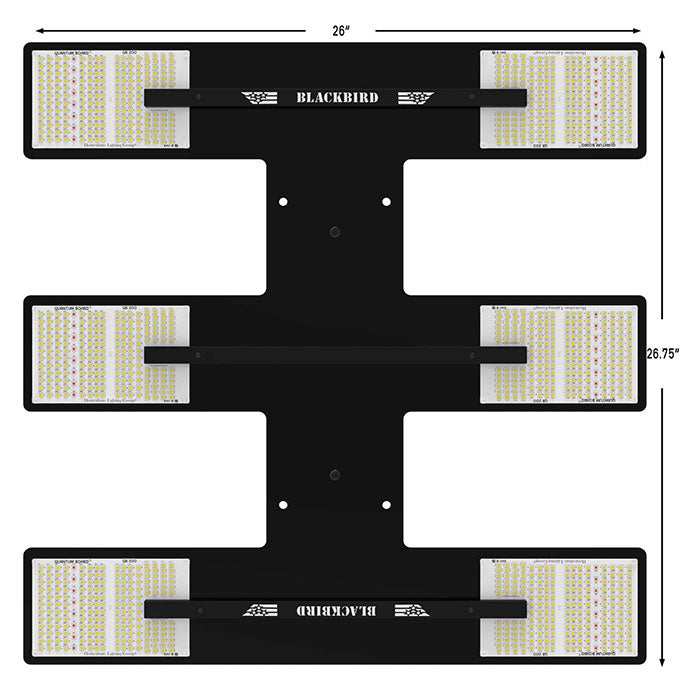

| Dimensions | 26” x 26.75” x 2.75” |
| Weight | 17.45 lbs |
| Warranty | 3 Years |
| Brand | Horticulture Lighting Group |
|---|---|
| SKU | HLG-BLACKBIRD-240V |
| Weight (lb.) | 18.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Lead Time | Ships in 2-5 business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $25.92 |
| Exact Watts | 600 Watts |
| Suggested Hanging Height | 20"-24" Flowering; 30" for Veg |
| LED Diode Type | Samsung LM301H LED’s & Deep Red 660nm |
| PAR Efficiency | 2.57 µmol/J |
| Total PPF Output | 1465 µmol/s |
| Voltage | 120 Volts, 240 Volts, 277 Volts |
| Amps | 5 Amps @ 120 Volts, 2.5 Amps @ 240 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 240 Volt |
| Coverage Area | Veg: 6' x 6'; Flower: 4' x 4' |
| ETL Listed | No |
| UL Listed | No |
