Horticulture Lighting Group Product Documents
HLG 750 Diablo ManualIdeal For Full & Flower Cycles

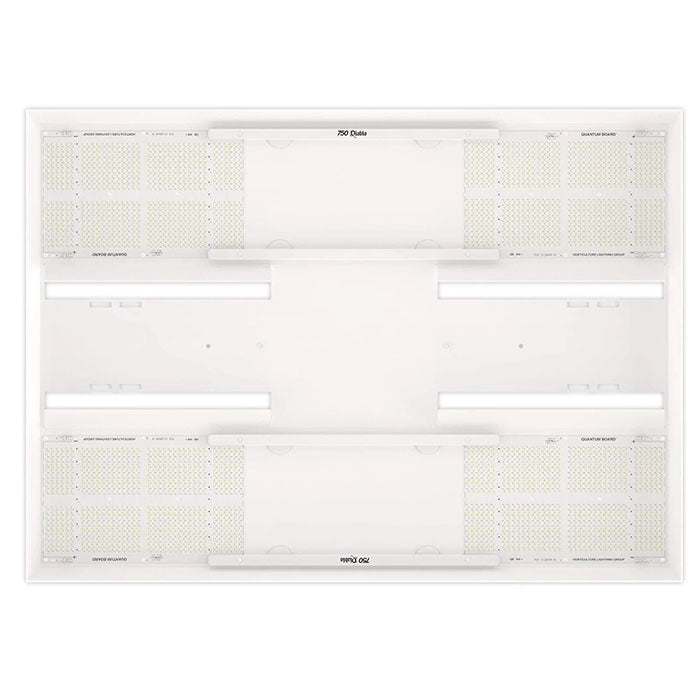

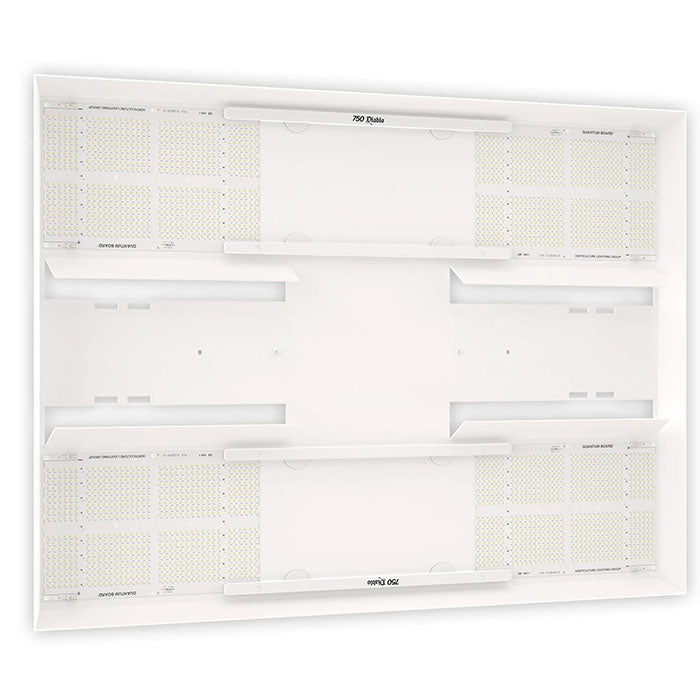

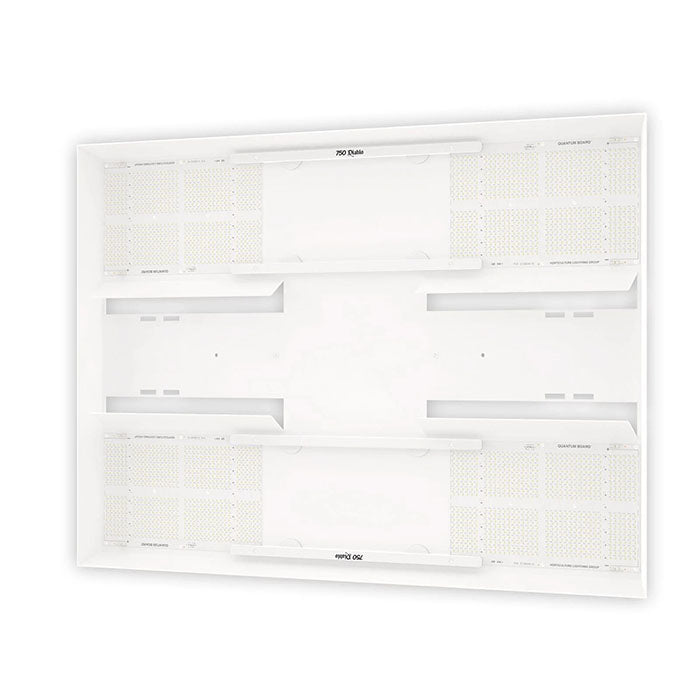

HLG 750 Diablo commercial lamps are designed for growers who want to maximize crop yields with a grow light that offers both high intensity and high efficiency. This lamp uses 4 advanced design Diablo Quantum Boards® for an even light spread making it perfect for grow tents, flood tables, and rolling benches.
IntIntegrated reflectors improve photon delivery resulting in better quality yields even at the lower canopy levels. This lamp produces over 2000 PPF output with photon efficacy of 2.88 µmol/J
What's Included
- HLG 750 Diablo Lamp
- Hanging hardware
- Rope Ratchets
- Power Cord
Features of the HLG 750 Diablo
- Over 2000 PPF output with photon efficacy of 2.88 µmol/J
- Integrated reflectors improve PPFD levels at all levels of canopy

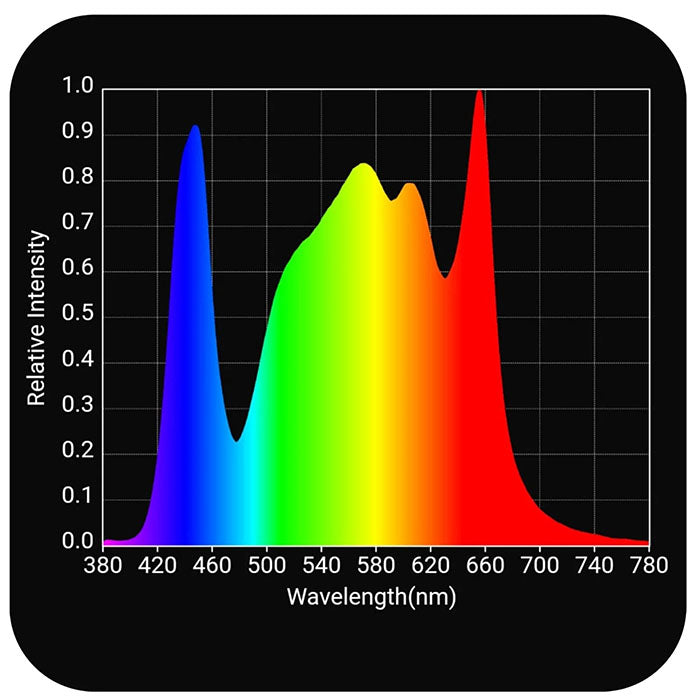

- Plant-centric White spectrum with Deep Red
- Reliable passive-cooled design
- Dimmable power supply included
- 5 Year Warranty
Dimming Options
- RJ Ports 0-10V & Manual Knob
- *GrowFlux Module for wireless dimming*
*If you select the GrowFlux Module, the GrowFlux Access Point IS REQUIRED for control of your fixtures
Optional Upgrade: GrowFlux Access Point
Securely connect your devices to the Cloud with GrowFlux Mesh, allowing for remote control, scheduling, and monitoring of horticultural lighting and sensors.
GrowFlux Mesh is an on-site, private, and secure wireless mesh developed for the agriculture industry, and offers long-range, high through-wall performance, self-healing redundancy, smart range extension, and secure encrypted communications.
- Number of fixtures & sensors supported: Up to 1,000
- Range: 500+ feet indoors through walls, 1+ mile line of sight
- Wireless networking protocol: AetherMesh Sub-GHZ 6LoWPAN
- Internal high performance antenna
- 1x 10/100 Ethernet port for local network connection
- Includes 5v power adapter, 5' ethernet cable, quickstart guide
Specifications of the HLG 750 Diablo
| Power | 0-715 Watts |
|---|---|
| Voltage Range | 120-277 VAC 50-60Hz |
| Flowering Footprint/ Canopy Distance | 5' x 5' / 15" - 24" |
| Veg Footprint/ Canopy Distance | 6' x 6' / 36" |
| System PPF Efficacy | 2.88 µmol/J |
|---|---|
| Total output | 2056 PPF |
| Dimensions | 37.5" x 27.125" x 3.75" |
| Certifications | Pending |
| Brand | Horticulture Lighting Group |
|---|---|
| SKU | HLG-750-DIABLO-RJ-MAN |
| Weight (lb.) | 24.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This product ships in 2 weeks |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Panel |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $30.88 |
| Exact Watts | 715 Watts |
| Suggested Hanging Height | 15” - 24” Flowering; 36” for Veg |
| LED Driver Type | Mean Well Driver |
| PAR Efficiency | 2.88 μmol/J |
| Total PPF Output | 2056 μmol/s |
| Voltage | 120 Volts, 240 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120/240 Volt |
| Coverage Area | Veg: 6' x 6'; Flower: 5' x 5' |
| ETL Listed | No |
| UL Listed | No |
| Dimming Option | RJ Ports & Manual Knob |
