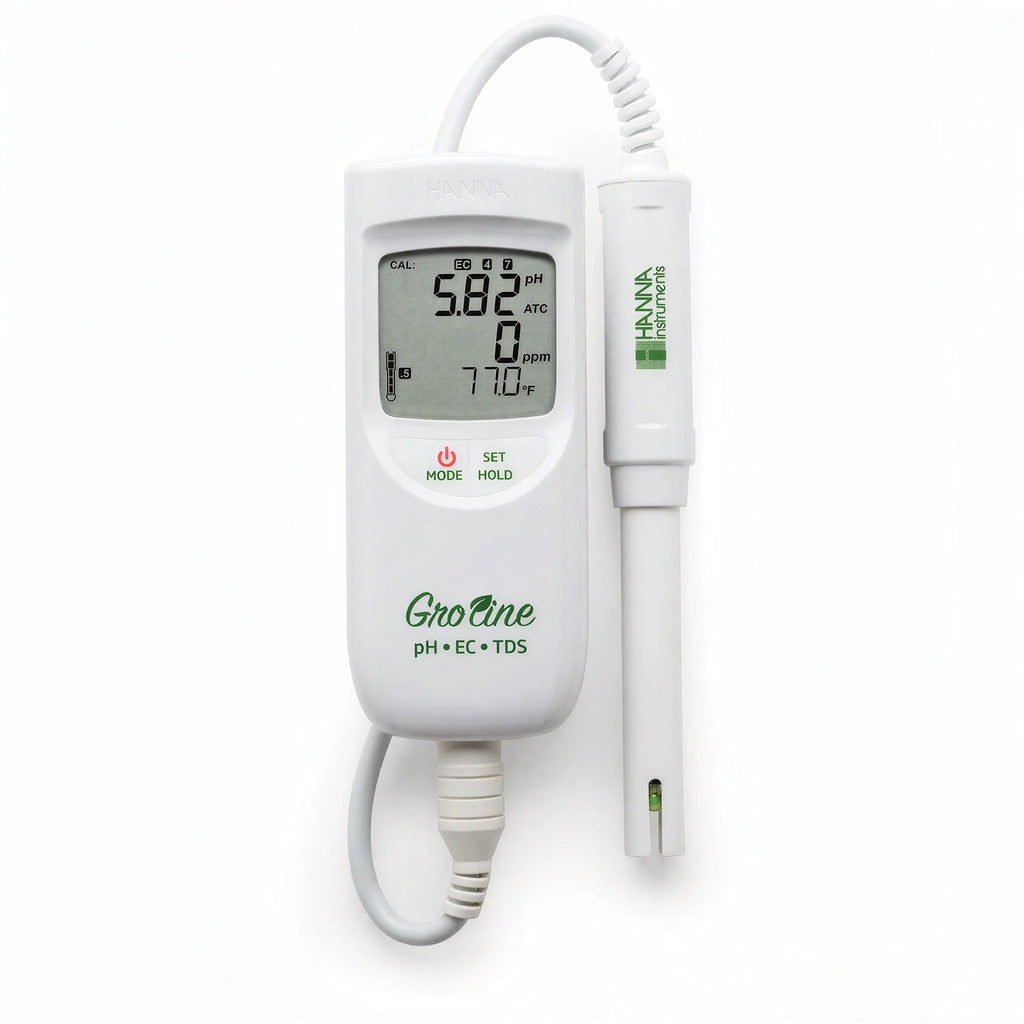

Hanna Instruments GroLine Portable Waterproof pH/EC/TDS Meter InstructionsThe Hanna Instruments GroLine Portable Waterproof pH/EC/TDS Meter is designed for hydroponic, aquaponic, and greenhouse growers.
Designed to bring simplicity to nutrient testing, the HI9814 Portable GroLine Meter is designed specifically for Hydroponic growers. The specialized electrode combines 3 sensors in a single rugged probe featuring a polypropylene body, integrated temperature sensor, and cloth junction. Your measurements require detailed attention; so should your electrode. The HI9814 Portable GroLine Meter features a replaceable HI1285-7 probe that has been carefully designed specifically for the pH, EC, and TDS analysis of hydroponic nutrient solutions.
Probe Condition
An on-screen indicator provides visual confirmation that your probe is working at its best.
Low Battery Indicator
The included batteries provide 600 hours of continuous use. When the battery level is below 10%, a warning symbol will blink to indicate low battery condition. When low battery power may affect your results, the meter will shut down to avoid erroneous readings caused by low battery level.
Automatic Shut-off
The auto-off feature can be set to shut the meter off at 8 or 60 minutes, or it can be disabled so that the meter continuously stays on. The auto-off feature prolongs battery life for peace-of-mind and energy savings if the meter is accidentally left on.
Built to be Durable
Designed to withstand the knocks, drops, and spills of real life, the new IP67 body ensures top performance in any environment. These meters are protected against dust and water intrusion from any direction.
Portable Design

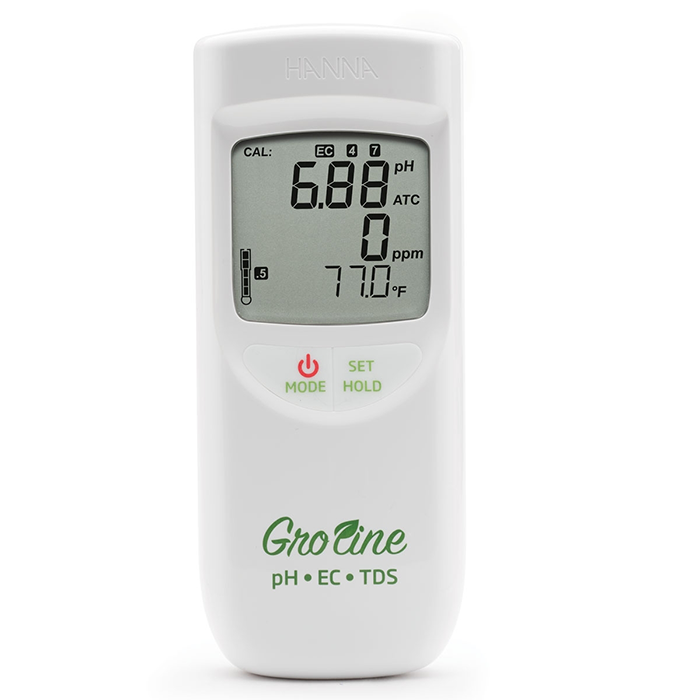

Made to fit comfortably in your hand for on-the-go testing, the multilevel LCD display provides at-a-glance pH, EC/TDS, and temperature measurements from any angle and dual button operation streamlines the testing process for any user.
Quick Connect Probe

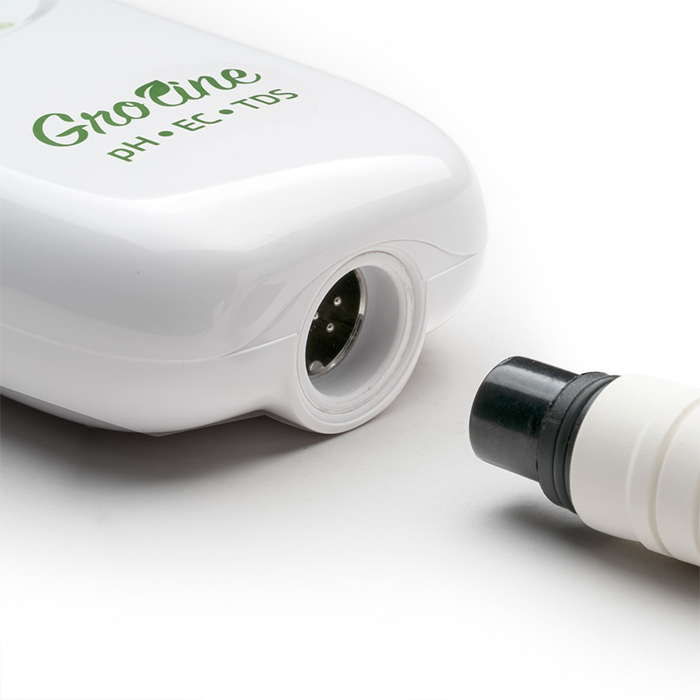

A Quick Connect DIN connector makes attaching and removing the probe simple and easy. The rubber coating protects the cable and provides a water-tight seal without twisting.
Polypropylene Body
The polypropylene body of the HI11285-7 houses all three sensors within a sturdy, single body design. The plastic body protects the electrode from damage, is easy to clean, and is chemically resistant to many aggressive chemicals.
Pre-Amplified pH Electrode
The pH sensor in the probe is a single junction electrode with gelled electrolyte and a retractable cloth junction. When readings appear sluggish, simply pull out some of the cloth material to renew the junction with a fresh surface.
Amperometric EC/TDS Sensor
The EC/TDS portion is a two-ring probe that comes with the HI9814, offering an accurate solution for low range EC and TDS readings. An integrated temperature probe ensures fast, accurately compensated readings even during sudden temperature fluctuations.
GroLine Portable Waterproof pH/EC/TDS Meter Models and Compatible Accessories
Old HI9814 (Left)
- Uses the HI1285-7 pH/conductivity probe with DIN Connector
- Compatible with the HI710025 Shockproof Boot (green)
New HI9814 (Right)
- Uses the HI1285-7 pH/conductivity probe with Quick DIN Connector
- Compatible with the HI710030 Shockproof Boot (green)
Follow This Simple Feed Chart Designed by our Research Team
| pH Range | -2.00 to 16.00 pH |
|---|---|
| pH Resolution | 0.01 pH |
| pH Accuracy (@25°C/77°F) | ±0.02 pH |
| pH Calibration | Automatic, 1 or 2 point, choose from: 4.01; 7.01; 10.0 pH buffers - one-point calibration using quick calibration solution |
| mV Range | ±825 mV (pH-mV) |
| mV Resolutio | 1 mV (pH-mV) |
| mV Accuracy | ±1 mV (pH-mV) |
| Temperature Range | -5.0 to 105.0 °C / 23.0 to 221.0 °F |
| Temperature Resolution | 0.1 °C / 0.1 °F |
| Temperature Accuracy (@25°C/77°F) | ±0.5 °C / ±1.0 °F |
| EC Range | EC Range |
| EC Resolution | 0.01 mS/cm |
| EC Accuracy (@25°C/77°F) | ±2% F.S. |
| EC Calibration | Automatic, one-point at 1.41 mS/cm or 5.00 mS/cm - one-point calibration using quick calibration solution |
| TDS Range | 0 to 3000 ppm (0.5 CF)/0 to 3990 ppm (0.7 CF) |
|---|---|
| TDS Resolution | 10 ppm (mg/L) |
| TDS Accuracy (@25°C/77°F) | ±2% F.S |
| TDS Conversion Factor | 0.5 (500 ppm) or 0.7 (700 ppm) |
| Temperature Compensation | pH - Automatic EC - Automatic, with β=1.9%/ °C |
| Power Supply | 1.5V AAA batteries (3 pcs.) |
| Power Consumption | approx. 600 hours of continuous use |
| Environment | 0 to 50 °C (32 to 122 °F) RH max. 100% |
| Dimensions | 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”) |
| Weight | 196 g (6.91 oz.) |
| Ordering Information | Supplied with HI1285-7 multiparameter probe, HI50036-0 Quick Cal buffer solution sachet (3), HI700661 pH electrode cleaning solution sachet for agriculture (3), 1.5 AAA batteries (3), and instructions. |
| Warranty | 2 Years |
| Recommended Probe | HI1285-7 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, DIN connector and 1m cable (included) |
| Brand | Hanna Instruments |
|---|---|
| SKU | HI9814 |
| Weight (lb.) | 0.4500 |
| Height (in.) | |
| Prop 65 | false |
| Lead Time | This product ships in 1-2 Weeks |
| Length (in.) | |
| Width (in.) | |
| Warranty | 2 Year |
| Hazardous Material | false |
| UPC | 666420116365 |
| ETL Listed | No |
| UL Listed | No |
