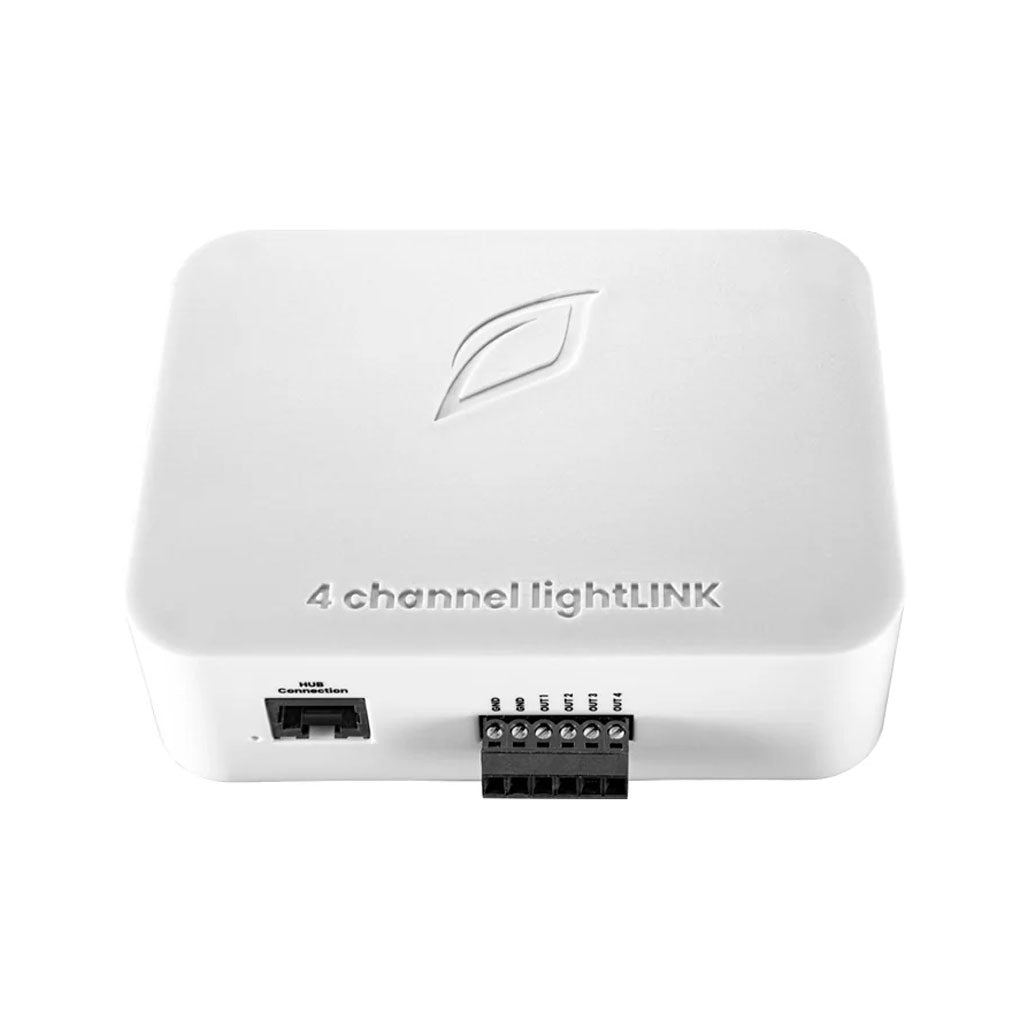

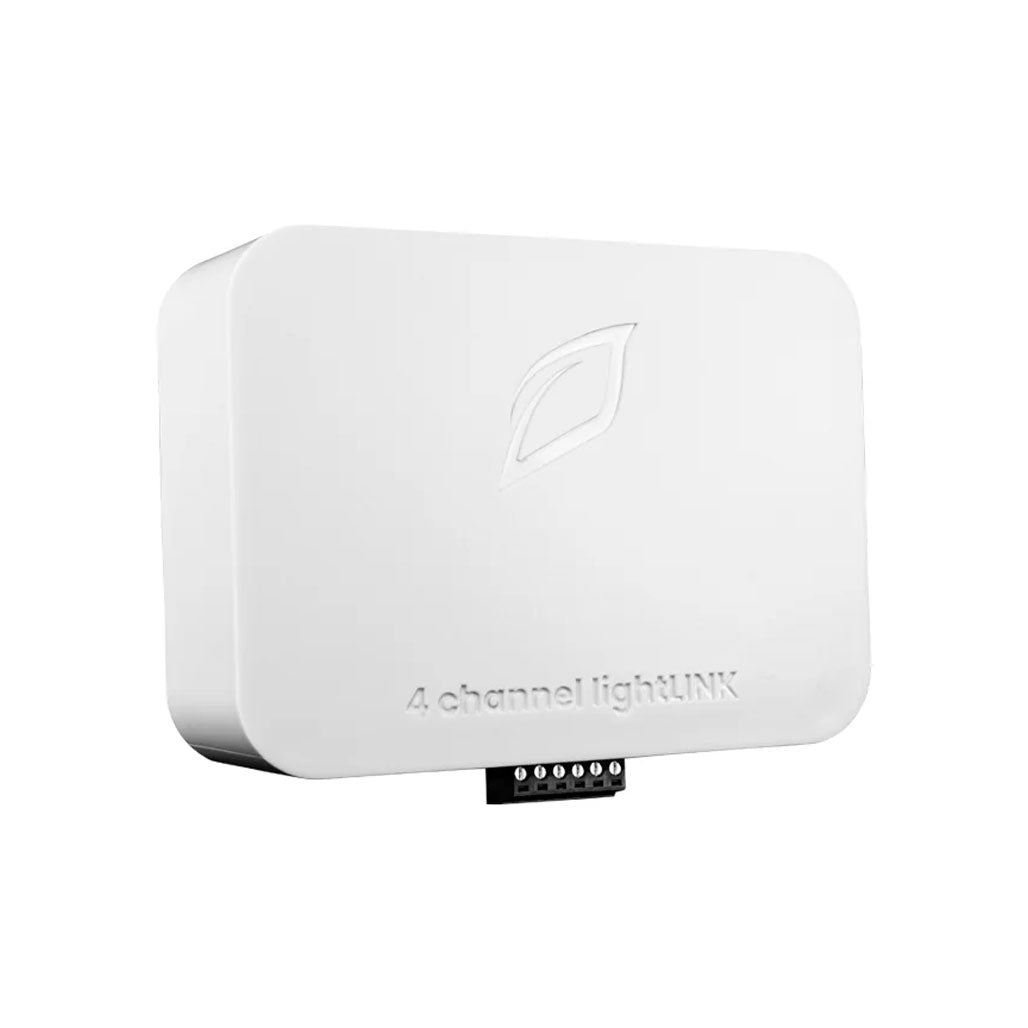

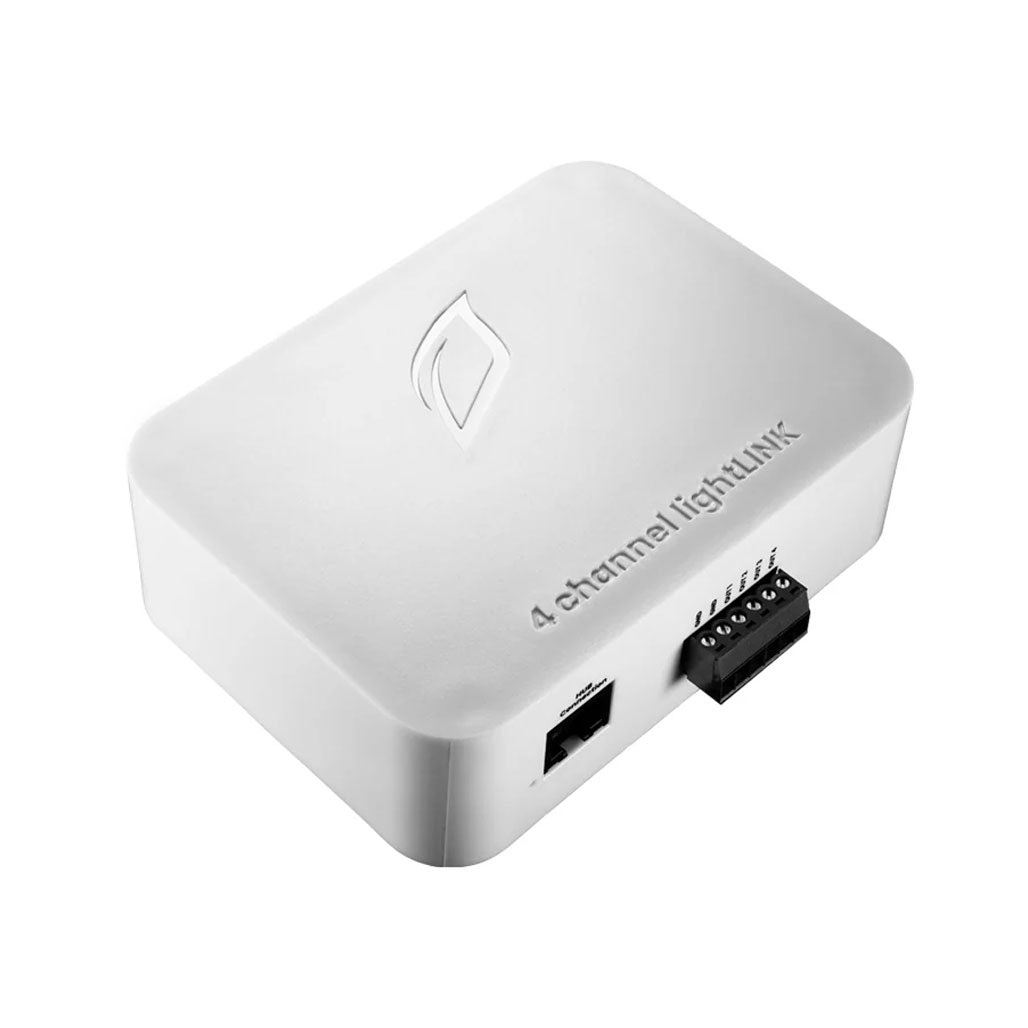

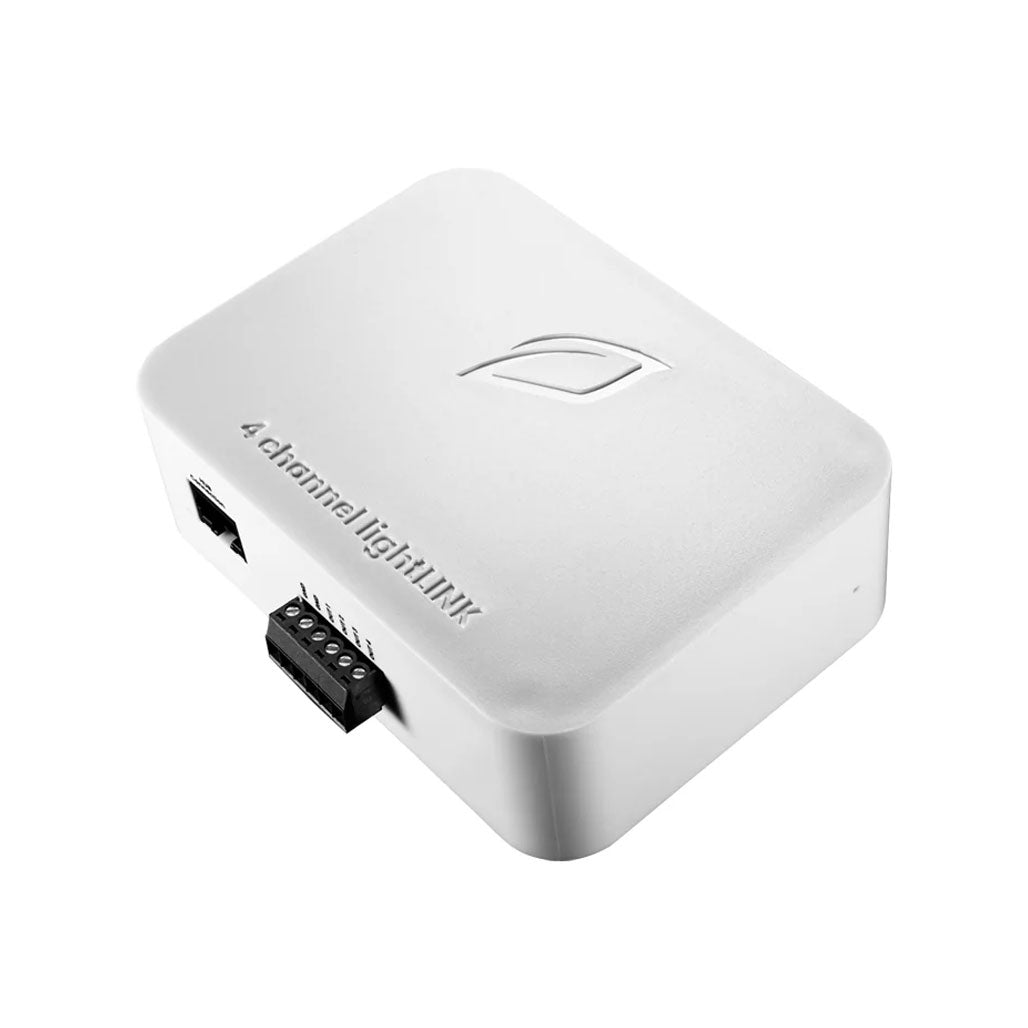

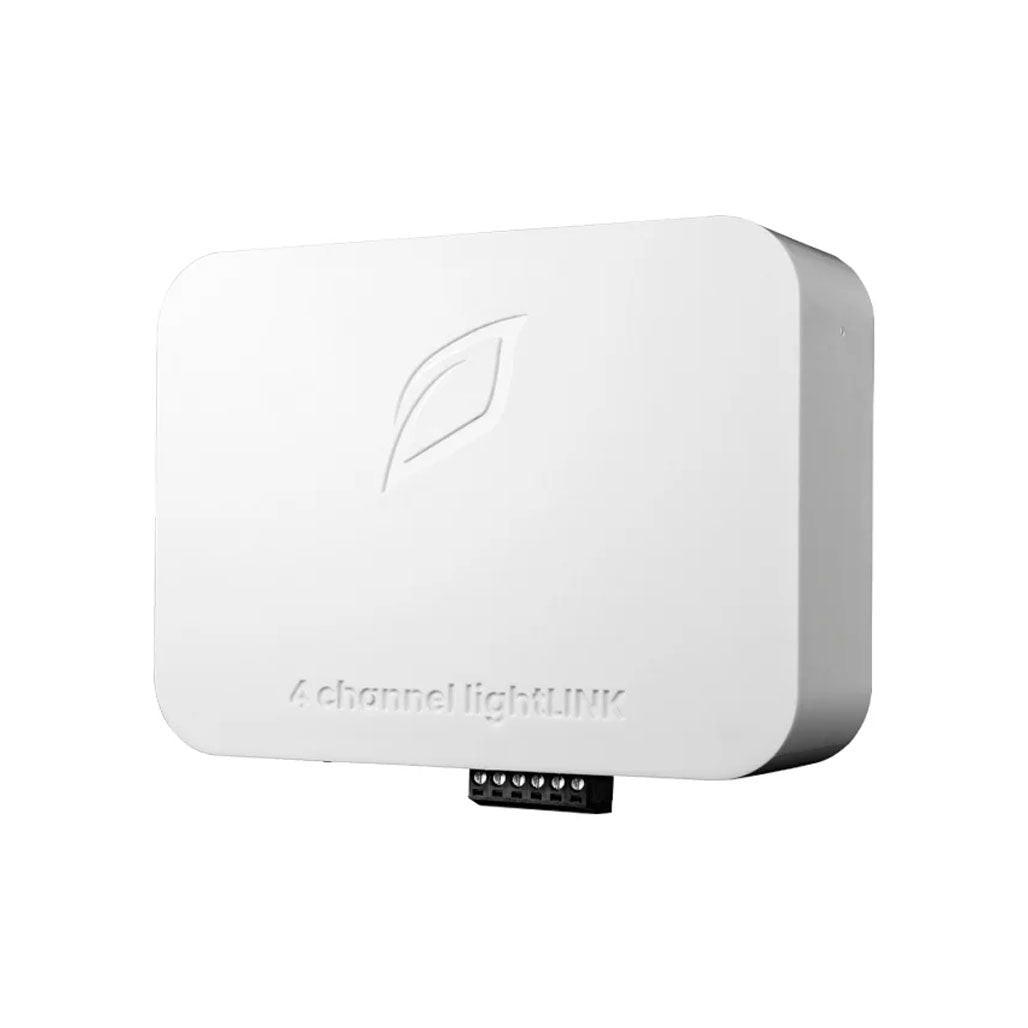

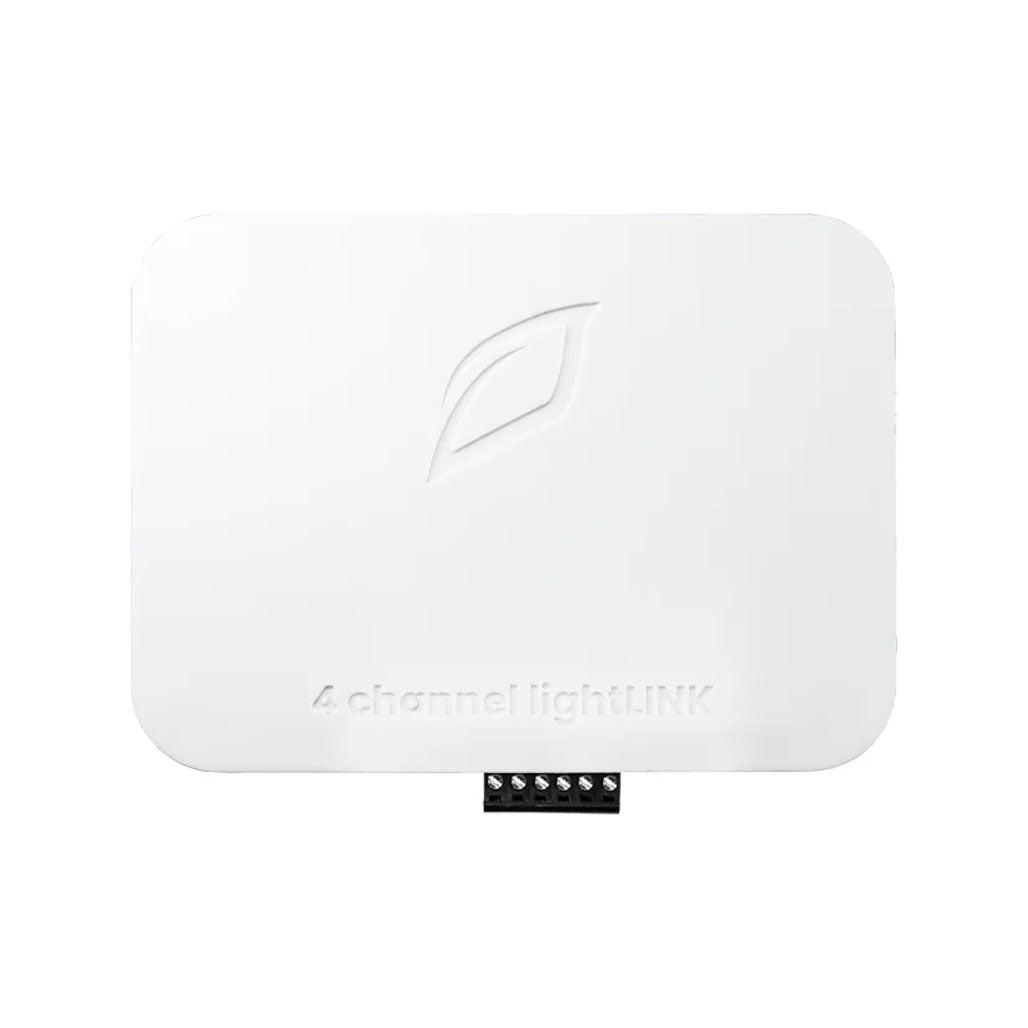

Growlink 4 Channel lightLINK Spec SheetZone-Specific Lighting Made Simple
The 4 channel lightLINK provides precise control over multiple lighting zones in your Growlink system. With 4 independent outputs, it manages up to 50 fixtures per channel, allowing smooth dimming and efficient energy use. Its rugged design ensures reliable performance, even in tough environments, making it a perfect choice for tailored lighting solutions.
Growlink 4 Channel lightLINK Key Features:
- 4 Independent 0-10V Outputs: Control up to 50 fixtures per channel, offering scalable lighting control across multiple zones.
- Flexible Analog Dimming: Enables smooth dimming for each zone, helping cultivators manage light intensity and energy use efficiently.
- Rugged, Reliable Design: Built for consistent performance, even in demanding environments, with optional DIN rail mounting for easy installation.
Growlink 4 Channel lightLINK Key Specs:
-
Input Power
- Voltage: 24V DC
- Current: 0.125mA/Channel Max., 0.5A Max. Overall
- Typical Power Consumption: 12W Max
-
Working Enviroment
- Temp: 50-122°F (10-50°C)
- Humidity: 0-75%RH (Non-Condensing)
-
Functionality Inputs:
- (1x) RJ-45 Port for Connection to Hub
-
Functionality Outputs:
- (4x) Analog 0-10V DC Output
-
Package Contents:
- 4 Channel lightLINK
- AC/DC Power Supply
- Mounting Kit
- 10 ft. RJ-45 Cable
- Mini Screwdriver
