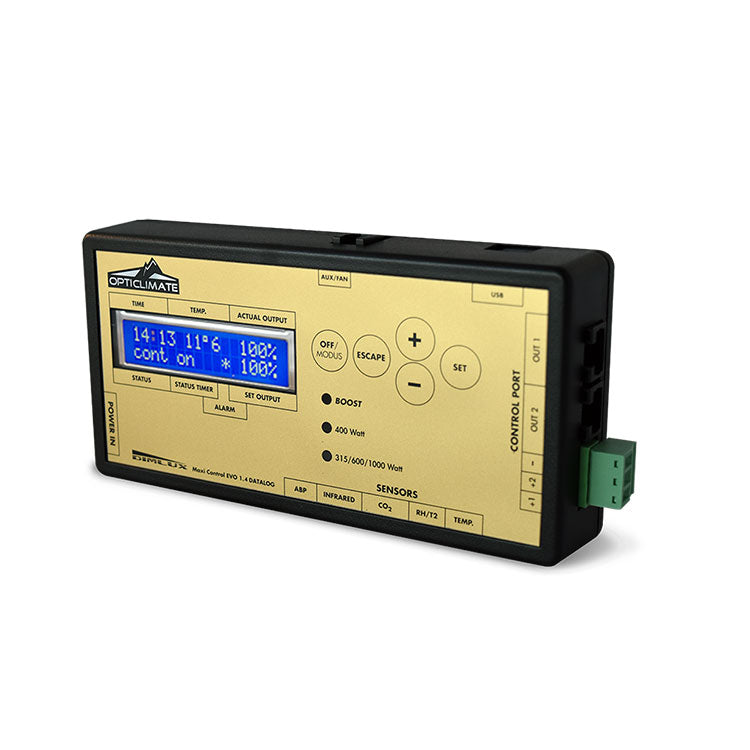

The Maxi Controller EVO Datalog is able to control up to 160 DimLux Expert fixtures or Xtreme ballasts. The Maxi Controller is able to switch the lighting on or off silently by means of a built-in timer. The lighting can also be regulated variably until the desired output is reached. The Maxi Controller is a modular control system for controlling the DimLux lighting system, a fan and the heating. The Maxi Controller controls and monitors the CO2, Vapor Pressure Deficit (VPD) and the plant temperature depending on the sensors chosen.
The DimLux Maxi Controller EVO Datalog can be used together with a USB data stick to store all values measured by the controller in order to view these later in graphic form on a PC. The controller writes the values onto the stick every minute.
The Maxi Controller EVO Datalog can adjust the output according to the temperature of the room. The DimLux lighting system is automatically dimmed once a certain temperature is exceeded. If the temperature is still too high, this controller will switch off all or half the fixtures until the desired temperature has been reached. The DimLux Expert fixtures or Xtreme ballasts can be connected directly to a wall socket. Only the time when this is to be switched on and off needs to be entered and the set is ready for use. The desired lighting intensity can be set using the + and – buttons.
It can also work with asynchronous times for example, 10 hours on and 10 hours off. This setting reduces the total cycles by almost 20%. Sunrise and sunset can also be simulated. This controller also has a thermostat/hygrostat function. It is also possible to regulate the level of CO2 in a closed room via an extremely accurate dual beam CO2 sensor. This CO2 sensor is able to control CO2 generators and cold CO2 installations.
It is also modular. The controller can be extended to include the AUX-BOX, FAN/AUX-BOX, CO2 sensor, CO2 Gas Protect sensor, a plant temperature camera, an RH sensor and a temperature sensor.
Maxi Controller Features
- Connects a maximum of 160 Dimlux fixtures or ballasts in 40 unit banks
- The first bank of 40 can be controlled with all the sensors
- Switching Dimlux lighting on or off manually or automatically
- Simulation of sunrise or sunset
- Measuring ambient temperature via a Temperature Sensor
- Relative humidity via an Humidity Sensor
- Measuring plant temperature via Plant Temperature Camera
- Display of Vapor Pressure Deficit (VPD)
- Controlling CO2 via a CO2 Sensor
- Detecting flammable, poisonous and harmful gasses via Gas Protect CO2 sensor
- Display of min/max value for all sensors with a time stamp
- Data log function for all sensors
- Fan control based on temperature and humidity FAN/AUX BOX
- Controlling a humidifier or dehumidifier and heating (with the AUX BOX or the FAN/AUX BOX)
Brand | DimLux |
---|---|
SKU | GG-610001 |
Weight (lb.) | 3.0000 |
Length (in.) | |
Prop 65 | false |
Width (in.) | |
Height (in.) | |
Lead Time | This product ships in 2-3 Business Days |
Hazardous Material | false |
UPC | 00636160407535 |
UL Listed | No |
ETL Listed | No |
