IZON Bench InstructionsActive Aqua IZON Rolling Bench

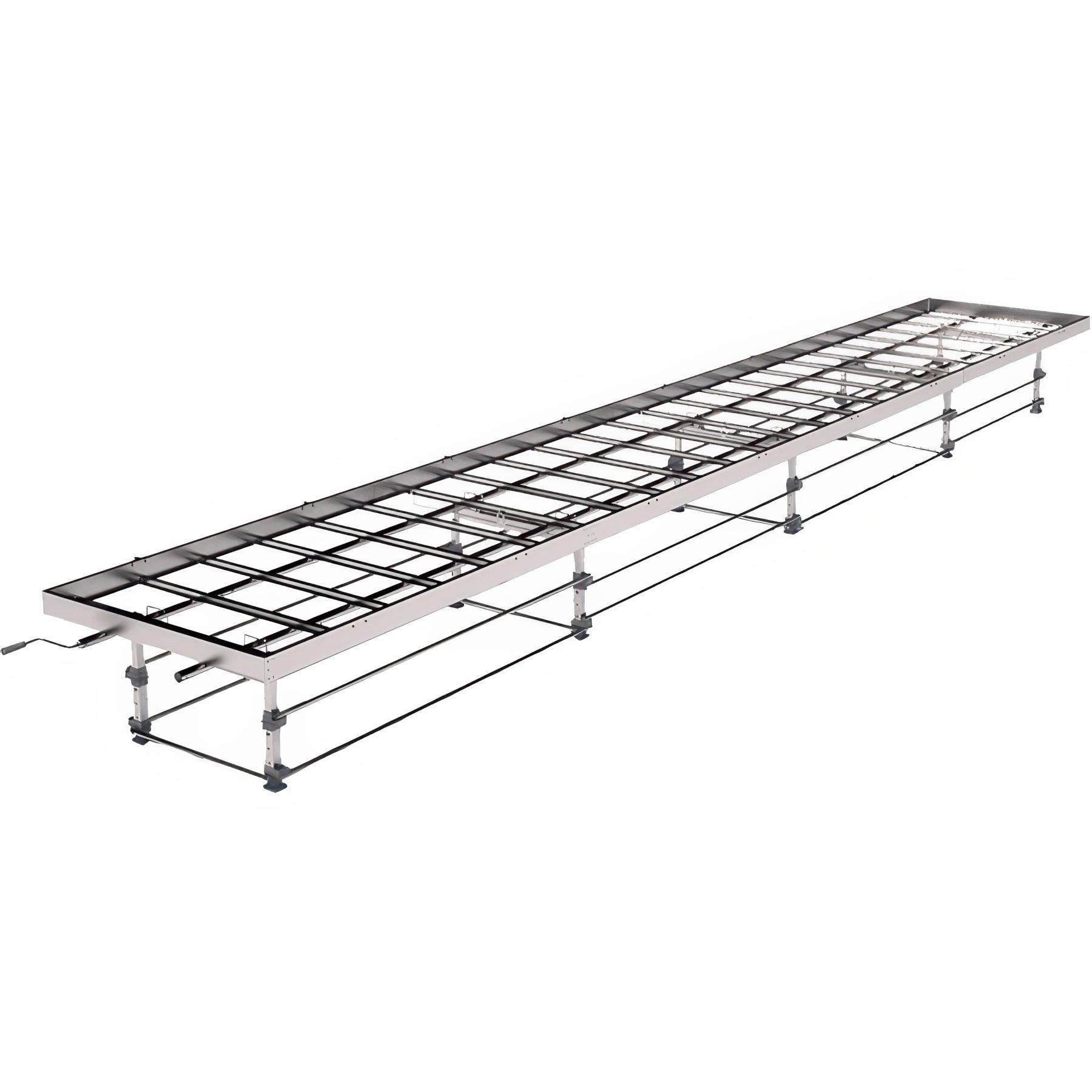

Growers can setup single runs up to 45.5’ in length and as short as 10’ with the new IZON Rolling Bench by Active Aqua. Commercial design, strong cross bars, and galvanized steel smooth moving rollers come together to create the ultimate adjustable length & height rolling bench. It’s sleek design and durable build make this bench the easy choice for growers looking to step up their game and maximize space.
The recommended Infinity trays can be cutdown to fit any length desired. Since the IZON slides in and out, it truly will fit any sized room up to a 45’ run. Simply Trim the “+” end of the tray to fit the desired length and use with the standard “+” and “-“ endcaps. If a bench needs to be an exact length long? No problem. Simply assemble the bench kit to fit the desired length of the room. Lay the + end cap at one end, lay the – at the other.
The IZON bench comes in 4' and 5' widths.
Please note: Trays are not included. Active Aqua Infinity trays are recommended, click here for trays!
BENCH SETUP:
Consists of 2 core products, (1) End Cap + Center section(s). Both items come together to form the adjustable length rolling bench.
- Box 1 includes the End Cap 6.5’ length (adjustable by 36”) allowing the End Cap to size down from 78”- 42”
- Box 2 includes the Center Section 6.5’ length
- Add center sections plus 1 end cap to complete your bench run
IZON Rolling Bench Features:
- Available in 4’ and 5’ widths
- Each bench run setup consists of Center Section(s) + 1 End Cap
- Custom length End Cap is adjustable (78”- 42”)
- Adjustable bench height: 24.5" full extension, 22.2" middle position, or 19.9" bottom position
- Maximum bench run length 45.5’
- Maximum bench run, (6) Center Sections & (1) End Cap
- Minimum bench run length 10.2’ - 13.2’ (36” adjustable length End Cap)
- Minimum bench run, (1) Center Section & (1) End Cap
- The maximum table traveling is 9" on each side for a 4-ft table and 10" on each side for a 5-ft table.
- Compatible with Active Aqua Infinity Series 4' & 5' Trays
- 4' bench fits standard 4' wide trays with ½" space on each lateral side
- 5' bench fits standard 5' wide trays with ½" space on each lateral side
- Stainless steel hardware
- Easy gliding
- Commercial installation ready
- Easy to assemble without cutting any parts
- Non-rust nylon feet
- Galvanized steel rollers
- Trellis support kit (not included) add-on item AAB60040
| Brand | Active Aqua |
|---|---|
| SKU | AA-IZON-5FT-16FT |
| Weight (lb.) | 236.0000 |
| Lead Time | This product ships in 1-2 Business Days |
| Prop 65 | false |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Shipping Restrictions | AK, HI |
| Grow Tray System Width | 5 Feet |
| Grow Tray System Length | 13.7 Feet to 16.7 Feet |
