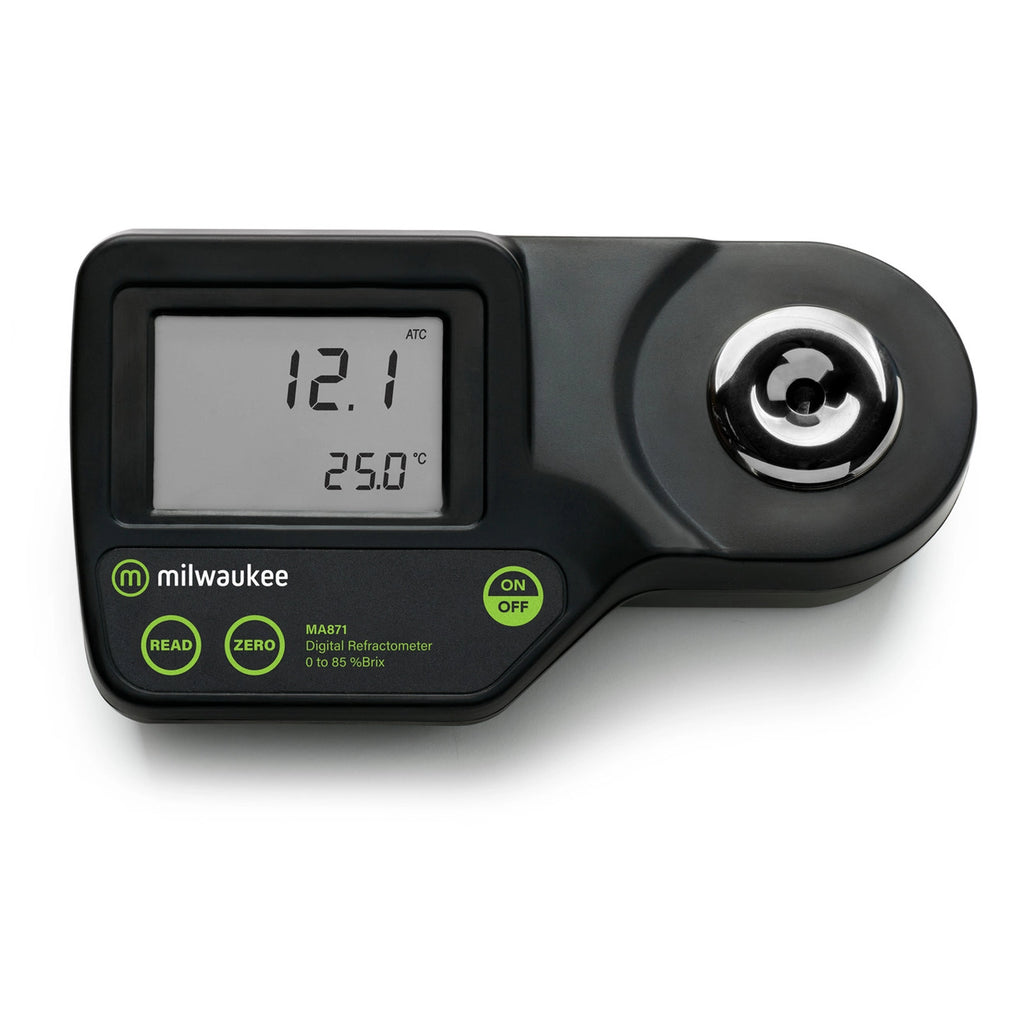

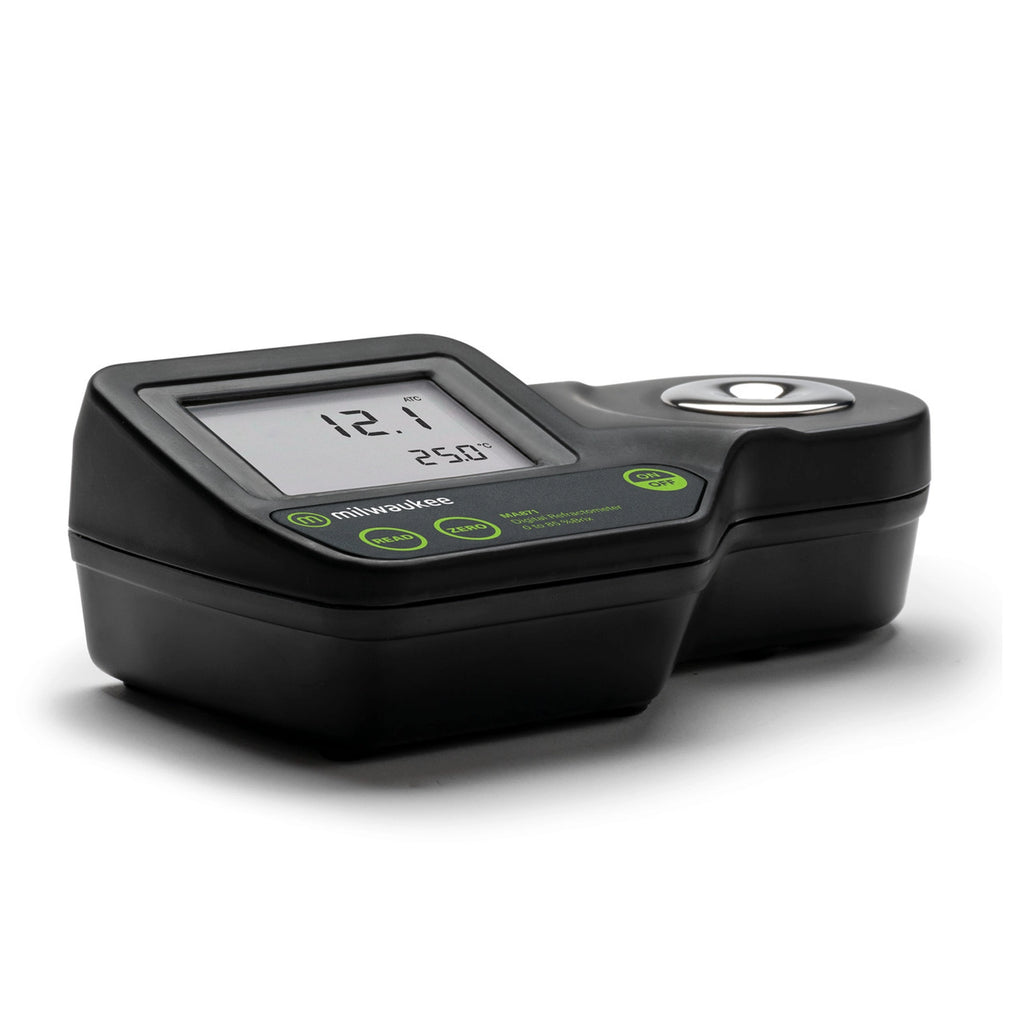

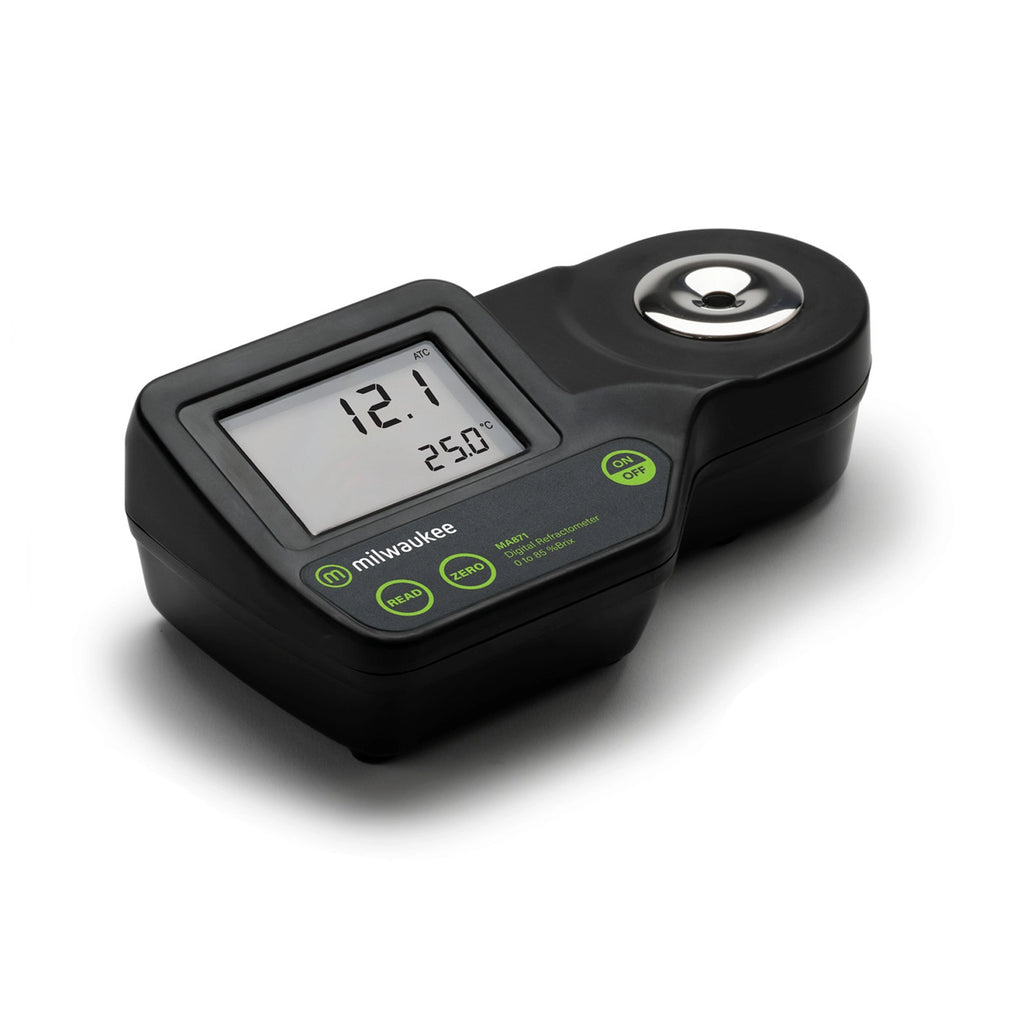

Thousands of food and beverage professionals and hobbyists have moved from less accurate and less precise optical refractometers to digital Brix measurement. Milwaukee's MA871 is the ideal tool for winemakers, brewers, fruit and vegetable growers, maple syrup producers, and food producers.
The MA871 is fast and easy-to-use with a response time under 2 seconds. Maintenance is a breeze with an easy-to-clean sealed flint glass prism and stainless steel well. The measurement technique and temperature compensation employ methodology recommended in the ICUMSA Methods Book (internationally recognized body for sugar analysis).
The Milwaukee digital BRIX refractometer is temperature compensated with a 0 to 85 percent BRIX range and ±0.2 percent accuracy. It is easy to use with simple two button operation and fast with a response time under 2 seconds. Maintenance is a breeze also with an easy-to-clean sealed flint glass prism and stainless steel well.
Design features
- Fast, accurate results with digital dual level LCD readout
- Easy measurement with just 2-3 drops of sample needed
- Results in less than 2 seconds
- Simple one-point calibration using distilled or deionized water
- Easy-to-clean stainless steel sample well
- Meter rated to IP65 as "dust tight" and protected against water jets
- Battery percent level indicator with automatic shut-off (batteries included)
- Automatic Temp. Compensation (ATC)
Specifications for Milwaukee MA871
| Range: |
0 to 85% Brix 0 to 80°C / 32 to 176°F |
| Resolution: |
0.1% Brix 0.1°C / 0.1°F |
| Accuracy: |
±0.2% Brix ±0.3°C / ±0.5°F |
| Light Source: |
Yellow LED |
| Measurement Time: |
Approximately 1.5 seconds |
| Minimum Sample: |
Volume 100 µL or 2 metrics drops (cover prism totally) |
| Sample Cell: |
Stainless steel ring and flint glass prism |
| Temperature Compensation: |
Automatic between 10 and 40°C / 50 to 104°F |
| Enclosure Rating: |
IP65 |
| Case Material: |
ABS |
| Battery Type: |
1 x 9V AA (included) |
| Battery Life: |
5000 hours reading with auto-shut off after 3 minutes of non-use |
| Calibration EC/TDS: |
Single Cell Factor Calibration; 2 Standards: 84 ÃŽ¼S/cm; 1413 µS/cm / One- point Offset: 0.00 µS/cm |
| Temperature Calibration: |
Factory Calibrated |
| Temperature Compensation: |
Automatic (ATC) from -20 to 120°C (-4 to 248 °F) | Manual (MTC) from -20 to 120°C (-4 to 248 °F) |
| Conductivity Temperature Coefficient: |
0.00 to 6.00 % /ºC (EC & TDS only) | Default value: 1.9 %/ºC |
| TDS Factor: |
0.40 to 0.80; default value: 0.50 |
| PC connectivity: |
1 micro USB port |
| Battery Type / Battery Life: |
3 X 1.5V Alkaline AA batteries (included) | Approximately 200 hours of use |
| Dimensions: |
7.6 x 4. 0 x 2.64 inches (192 x 102 x 67 mm) |
| Weight: |
.93 lbs. (0.42 kg) |
