Hanna Instruments pH Electrode for HI981401N & HI981404N

SKU: HI1286
No reviews
Hanna Instruments Brand ProductMultiple Units? Click for Volume Pricing.

Availability: Out of stock

Lead time: Ships in 2-3 Business Days


Price:
Sale price$69.99

Hanna Instruments Product Documents

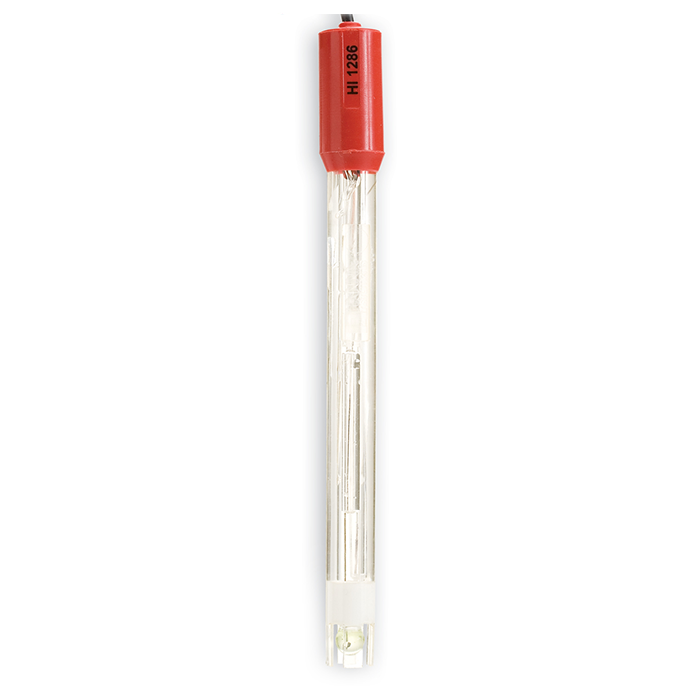

The Hanna Instruments PEI Plastic Body pH Electrode will give anybody a chance to test pH while still being affordable.

The HI1286 brings the ability to test pH to any user at an affordable price. The polyetherimide (PEI) body protects against accidental breakage while the spherical glass tip is perfect for aqueous samples due to the large surface area. Suitable for samples from 0 to 80°C (32 to 176°F), this electrode is perfect for any general use application.

Hanna Instruments pH Electrode for HI981401N & HI981404N

  • PEI body offers increased durability
  • PTFE junction protects against clogging
  • Universal BNC connector makes this the perfect replacement electrode

PEI Body
The body of the HI1286 is composed of polyetherimide (PEI) resin. The PEI body is suitable for a wide range of applications and excels in field measurements due to its durability. The shielding around the spherical glass tip minimizes breakage due to accidental bumping or dropping of the electrode. The PEI plastic is a high quality plastic that is chemically resistant to many aggressive chemicals.

BNC Connector
The HI1286 uses a BNC connector. This type of connector is universal in that it can be used on any pH meter that has the female BNC probe input. Other types of connectors include DIN, screw type, T-type, and 3.5mm to name a few. These types of connectors tend to be proprietary for a particular type of meter and are not interchangeable.

Double Junction Reference
A double junction electrode has an internal compartment surrounding the reference wire. Silver ions are present in the electrolyte of the internal compartment, which houses the Ag/AgCl reference wire; the electrolyte outside this compartment is silver free. The double junction design means that virtually no silver from the electrode enters the sample. This design allows measurement in applications where silver ions in the sample are undesirable or silver precipitates on the junction are likely to form.

PTFE Junction
Porous polytetrafluoroethylene (PTFE) is a hydrophobic material that is available with different porosities. This type of junction is often used on electrodes with polymer electrolytes. Because of its chemical advantages, PTFE is widely used in industrial applications.


Hanna Instruments Hanna Phep5 pH Tester Specs

Junction / Flow Rate PTFE
Electrolyte Polymer
Max Pressure 3 bar
Recommended Operating Temperature 0 to 80˚C (32 to 176˚F) - GP
Tip / Shape Spheric ( dia: 7.5 mm)
Diameter 12 mm
Body Length 120 mm / 163 mm
Temperature Sensor No
Amplifier No
Body Material PEI
Cable coaxial; 2 m (6.6')
Connection BNC
Brand Hanna Instruments
SKU HI1286
Weight (lb.) 1.0000
Height (in.)
Prop 65 false
Lead Time Ships in 2-3 Business Days
Length (in.)
Width (in.)
Warranty Yes
Hazardous Material false
ETL Listed No
UL Listed No
