DIG Product Documents

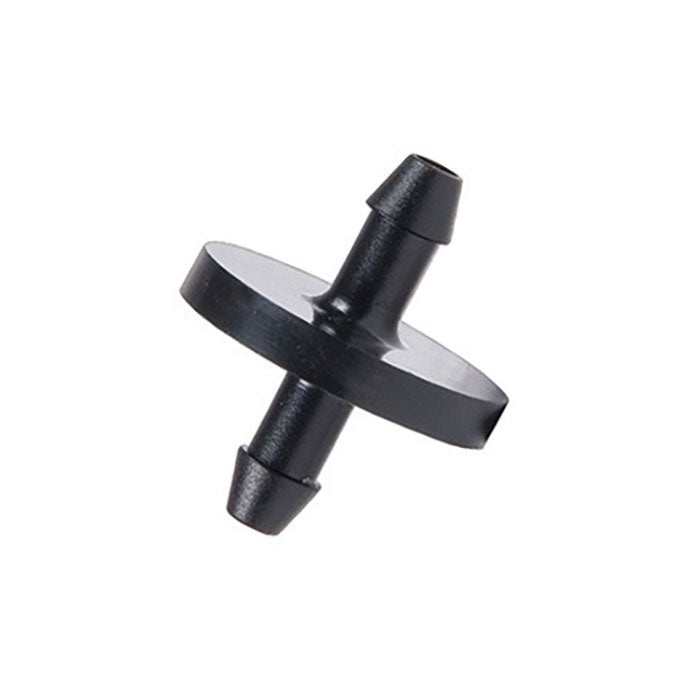

The Inline Drip Emitters offer installation simplicity using 1/4” distribution tubing. They are available in two flow rates of .5 GPH and 1 GPH at 15 PSI, and can be used with 1/4” distribution tubing as the mainline for pots, baskets, planter boxes, containers and for low-pressure gravity feed systems. Install the drip emitters as needed in any spacing with the 1/4″ distribution tubing as the mainline.
Features
- Color-coded to easily identify flow rate
- Can be installed where desired along the 1/4″ distribution tubing
- Ideal for a loop-type layout
- Uniform flow rate at low pressure
- 1/4″ barbed inlet and outlet for installation into 1/4″ micro tubing
- Resistant to chemicals and fertilizers used in landscape applications
- Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
Specifications
- Operating pressure range: 5 to 25 PSI
- Recommended operating pressure: 10 to 25 PSI
-
Flow rates and color codes:
- .5 GPH color code – red
- 1 GPH color code – black
- Inlet side: 1/4" barb
- Outlet side: 1/4" barb
- Filter requirement: minimum of 150 mesh
- Material: polypropylene
| Brand | DIG |
|---|---|
| SKU | 06-037-PCK |
| Weight (lb.) | 2.0000 |
| Prop 65 | false |
| Lead Time | This product ships in 3-5 business days |
| Hazardous Material | false |
| UPC | 840620104623 |
| UL Listed | No |
| ETL Listed | No |
| Case/Pack/Pallet Amount | 400 |
| Irrigation Part Type | Drip Emitters |
| Hardware Diameter | 1/4 Inch |
