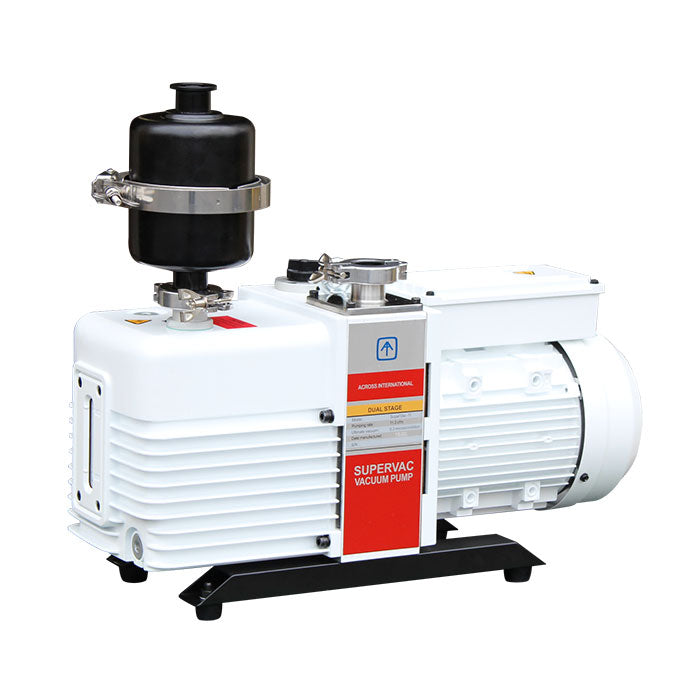

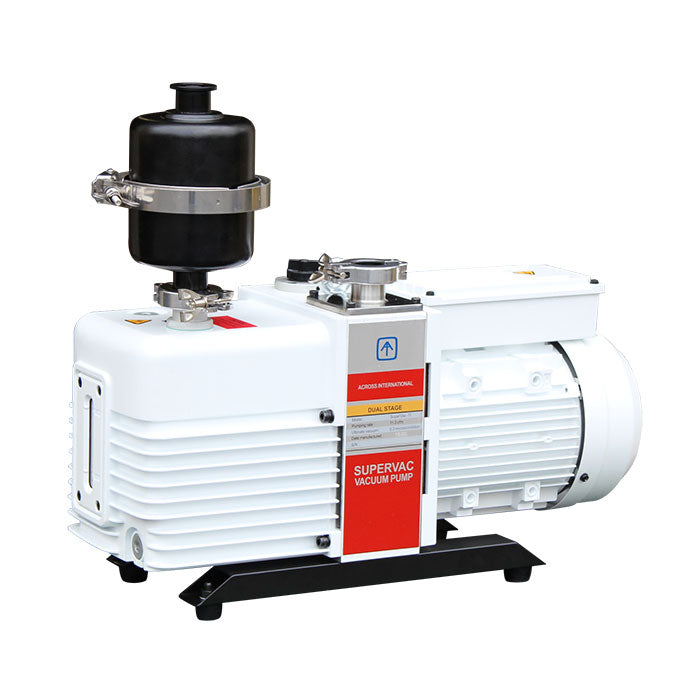

Across International SuperVac 11.3 CFM Corrosion-Resist 2-Stage Vacuum Pump - UL/CSA Certified

SKU: SV11C-UL-220V
No reviews
Across International Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Shipment Restrictions
This item cannot be shipped to the following states: AK, HI


Voltage: 220 Volt
Price:
Sale price$2,690.00

Across International Product Documents

The new Ai SuperVac 11.3 cfm commercial grade vacuum pumps are now UL/CSA certified (115V model), this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. They are also more powerful (1,100kW vs 750W) and corrosion resistant. These pumps are designed for reliable long time continuous operation, they will take your equipment's vacuum down to 0.3 micron in minutes. Comes standard with all necessary fittings and a high capacity exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run.

Multi-level gas ballast is designed to allow purposefully pull a less deep and slower vacuum by opening the gas ballast, allowing dry air to go directly into the pump and diluting the vacuum pull, and it also helps keep moisture, solvent, and other contaminants from getting stuck in the pump, and instead passing through to the exhaust.

It is important to note that pumps should always be ran in a well ventilated area.

Free high capacity exhaust oil mist filter ($250 value), KF25 flexible stainless steel bellow (3.3 ft), clamps and centering rings set ($219 value) included.

Features

  • UL 61010-1 and CSA C22.2 certified (115V model)
  • 45% more powerful 1,100W motor vs 750W in the previous version
  • Corrosion-resistant design for durable operation in various environment
  • Adjustable gas ballast
  • Built-in oil back-flow prevention check valve
  • Internal forced oil cycling system
  • Integrated cylinder structure
  • Exhaust filter with easy-to-change replaceable filter element
  • Heavy duty structure and designed for reliable long time operation
  • Low noise
  • All necessary fittings and filter included for immediate use
  • 2-year warranty

Product Specs:

Electrical requirements
115V 60Hz or 230V 50/60Hz, single phase, 1,100 watts
Pumping rate
11.3 cfm (115V 60Hz), 9.3 cfm (230V 50/60Hz)
Ultimate vacuum without gas ballast
0. 3 micron/millitorr
Ultimate vacuum with gas ballast
6 micron/millitorr
Inlet/outlet connection
KF25/NW25 flange
Oil volume
1.5 liter / 1.59 quart
Motor rate 1715 rpm (at 60Hz) or 1440 rpm (at 50Hz)
Working temperature 5 to 40°C
Unit/shipping dimensions (LxWxH)
21x7.5x12" / 36x10x17"
Unit/shipping weight
72 Lb / 90 Lb
Recommended oil Ultra-grade 19
Noise level < 58 dB
Warranty Two years
Compliance
UL (E500328), CSA, CE

Package includes

Part description

Quantity

Ai SuperVac-11C vacuum pump with exhaust oil mist filter
1 set
Ai premium vacuum pump oil 1 pc
KF25 flexible stainless steel vacuum bellow (3 ft)
1 pc
KF25 wing nut flange quick clamp
2 pcs
KF25 flange centering ring
2 pcs
User's manual 1 pc
Brand Across International
SKU AI-SV11C-UL
Hazardous Material false
