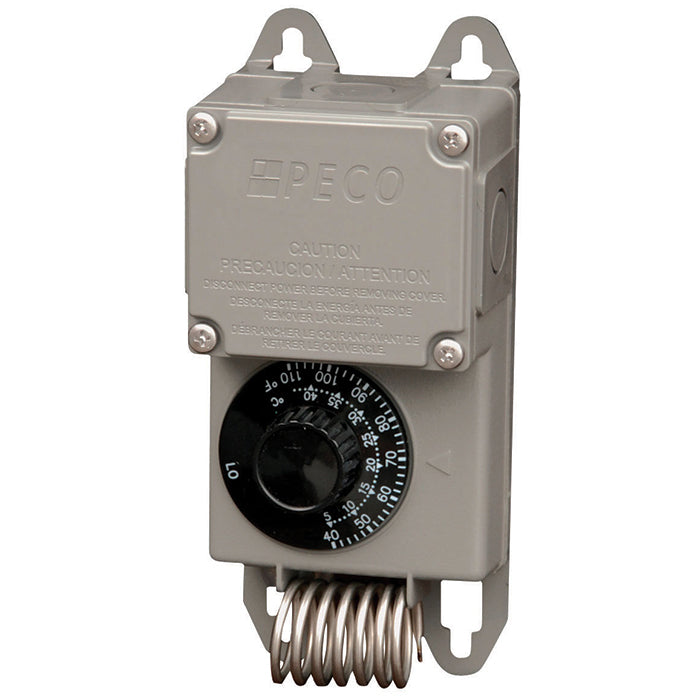

J&D Manufacturing’s rugged VC115 thermostat is perfect for applications that require a simple weather resistant control. It may be wired for heating or cooling to control your exhaust fan, circulation fan, power shutter, heater or heat lamp. For plug-and-go operation, the VC115-C is pre-wired with a 115 Volt 8’ piggyback cord. Simply plug the thermostat into a grounded outlet, then plug your exhaust fan, circulation fan, or power shutter into the back of the thermostat plug for instant operation. No electrician required!
This single stage thermostat features a NEMA 4X enclosure which means it is rated as being watertight, corrosion resistant, and approved for indoor/outdoor use. Can be used for heating or cooling and has temperature set points from 40 to 110 degrees Fahrenheit. High surface area of the stainless steel sensor coil provides quick responses to temperature changes. Will work with 115/230/277 volts at 50 or 60Hz. Amperage rating of 16/12/10 depending on the volts.
This model is the VC115 . You can view the other models here:
Features of the VC115
| Brand | J&D Manufacturing |
|---|---|
| SKU | VC115 |
| Weight (lb.) | 1.0000 |
| Lead Time | Ships within 2 weeks |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 1 Year |
| Hazardous Material | false |
| UPC | 737623121156 |
| Prop 65 | false |
| Controller Functions | Temperature Control |
| Remote Sensor | No |
| Temp Setting Range | 40 - 110 Degrees F |
| Has Photocell | No |
| Amps | 16 Amps @ 115 Volts, 12 Amps @ 230 Volts, 10 Amps @ 277 Volts |
| Voltage | |
| Frequency | 50/60 Hz |
| Power Cord Length | No Cord Included |
| ETL Listed | No |
| UL Listed | Yes |
